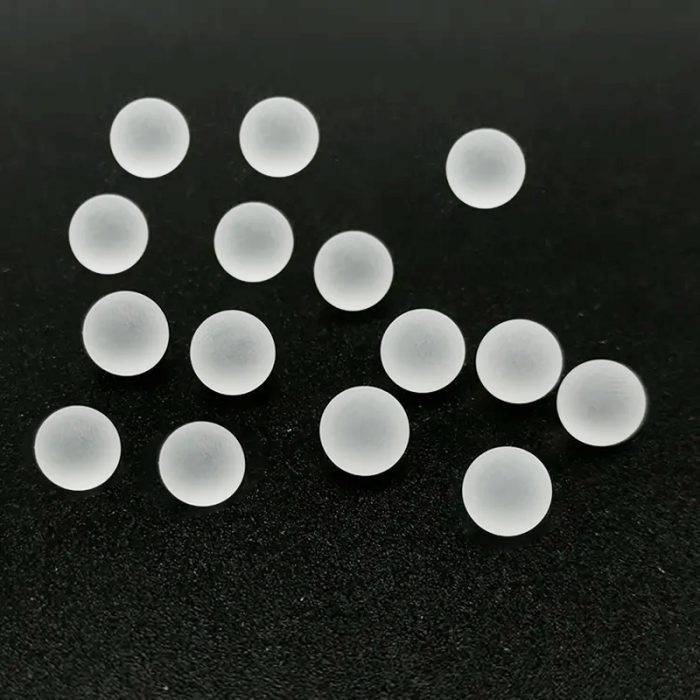

Spherical Ball Lens K9 Optical Glass
Original price was: $1.00.$0.69Current price is: $0.69.
31% Off
Spherical Ball lens commonly used in the optical fiber coupling, laser collimating device, Optical Measurement System,it has a shorter focal length and the characteristics of small size. Sunday produce ball lens, half ball lens, Super hemisphere ball lens, hollow ball lens.
Description
Spherical Ball lenses are a completely spherical lenses most commonly used for improving signal coupling between fibers, emitters and detectors. Aside from fibre coupling applications, ball lenses are also used as objective lenses in endoscopy, laser measurement systems, and bar-code scanning. Ball lenses are manufactured from a single substrate of glass and can focus or collimate light, depending upon the geometry of the imput source.
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005
Specification
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′,+/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
1. Customs Duties:
All the products shipping from China might cause tariffs.All the products S&F sells default FOB trading terms the buyer will take responsibility on all kinds of tax in
their country. If you have special requests about declarationplease leave messages to us when you place an order.
2. Delivery
·All packages to Brazil need CPFnumber byDHL/UPS/Fedex/EMS
·All packages to Argentina need CUIT number byDHL/UPS/Fedex/EMS All packages by Chile need RUT number byDHL/UPS/Fedex/EMS
·All packages to Russia need the Full Name(First name+Mid name+Last name
2. Warranty
If any quality problem found after your receiving the package within 7 days,pls provide proof of video or photos to uswe could offer refund or replacement once we confirm the problem.
For return and exchange,buyer holds responsibility of paying the freight of sending the product back,We will bear the freight of resending it
