Solid Sapphire Glass Optical Ball Lenses
Original price was: $0.60.$0.45Current price is: $0.45.
0% Off
Usage: Optical, Fiber Coupling
Type: Ball Lenses
Transmittance: >95%
Shape: Ball, Hemisphere
Material: K9 Quartz Bk7 Sapphire Germanium Silicon Znse
Lenses Color: Clear
Sphericity：0.003mm
Description
Optical Ball lens commonly used in the optical fiber coupling, laser collimating device, Optical Measurement System,it has a shorter focal length and the characteristics of small size. Sunday produce ball lens, half ball lens, Super hemisphere ball lens, hollow ball lens.
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005
Specification
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′,+/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
Related products

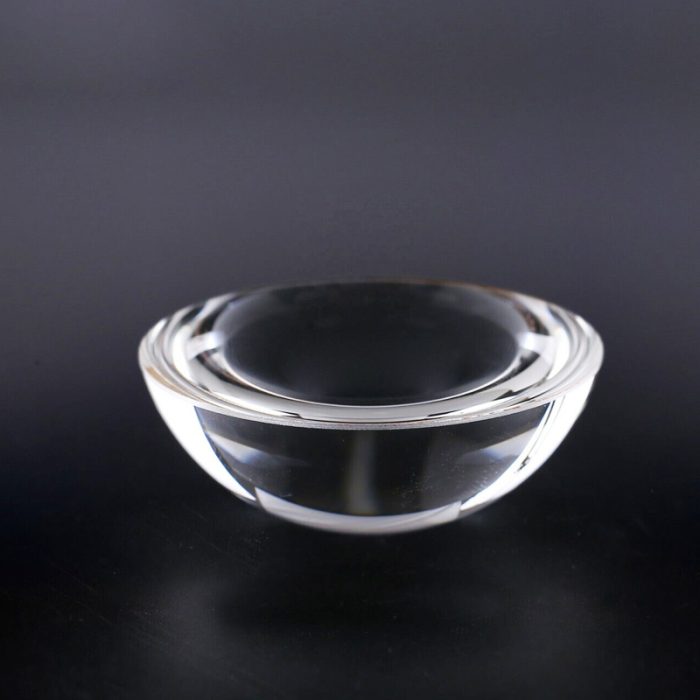

High Precision Half Hemisphere Ball Lens
