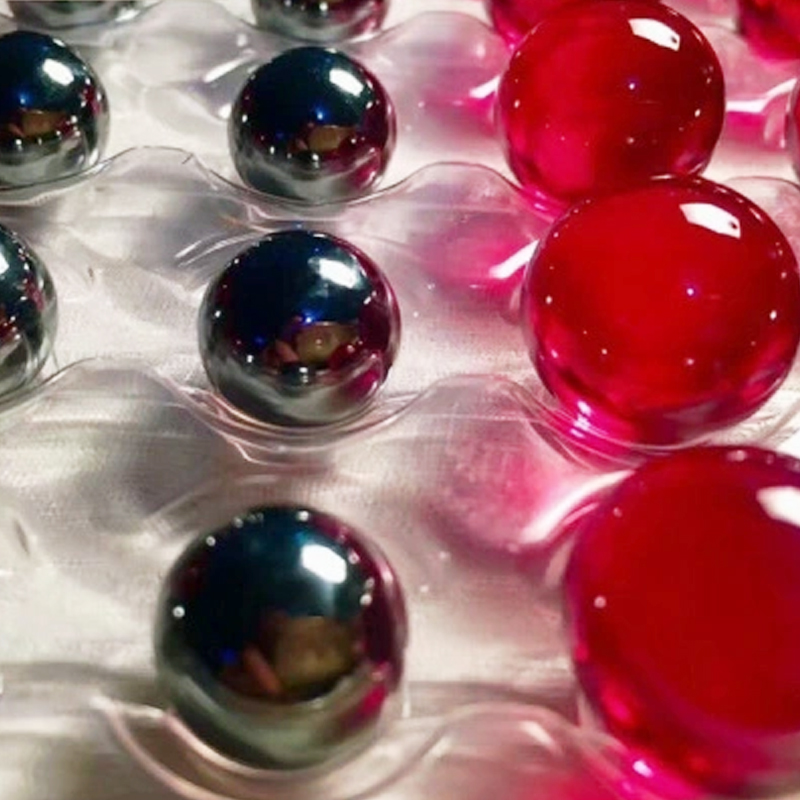

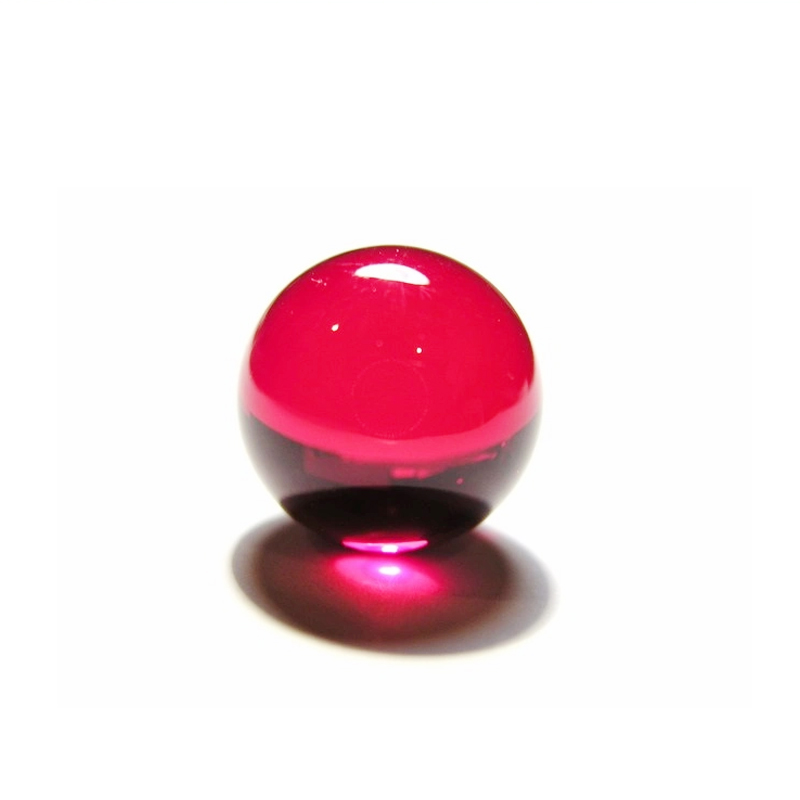

Znse Ruby Optical Ball Lenses For Laser

Original price was: $1.80.Current price is: $1.10.

39% Off

——-
Support global shipping!This is customized optical lens.The Ball Lens is used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling.
——-
Model:c-001
Size:φ0.1,φ0.2,etc,costom
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Description

Znse Optical Ball Lens are widely used in Laser Machine. Optical Balls is a great optical components for improving signal coupling between fibers, emitters, and detectors. They are also used in endoscopy, bar code scanning, ball Pre-forms for aspheric lenses, and sensor applications. Ball lenses are manufactured from a single substrate of glass and can focus or collimate light, depending upon the geometry of the input source. tages than silicone lens and plastic lenses.

Specification of optical 1.8mm ball lens we manufactured:
Material: BK7,Znse,Sapphire, Ruby or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005

Specification

Range of diameter Dia.0.7mm-Dia.400mm
Range of curve radius R1.5-R∞ etc.
Tolerance of diameter +/-0.1, +/-0.01, +/-0.005 etc.
Surface accuracy λ , 1/2λ , 1/4λ , 1/10λ  etc.
Tolerance of Thickness +/-0.1, +/-0.05, +/-0.01 etc.
Centration +/-2′,+/-1′ etc.
Aperture N 5, 1 etc.
Irregularity ΔN 2, 1, 0.5, 0.2 etc.
Surface quality 60/40, 40/20, 20/10, 10/5 etc.
Inspection:Each lens be tested before packing,a formal tested report will be provided.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
