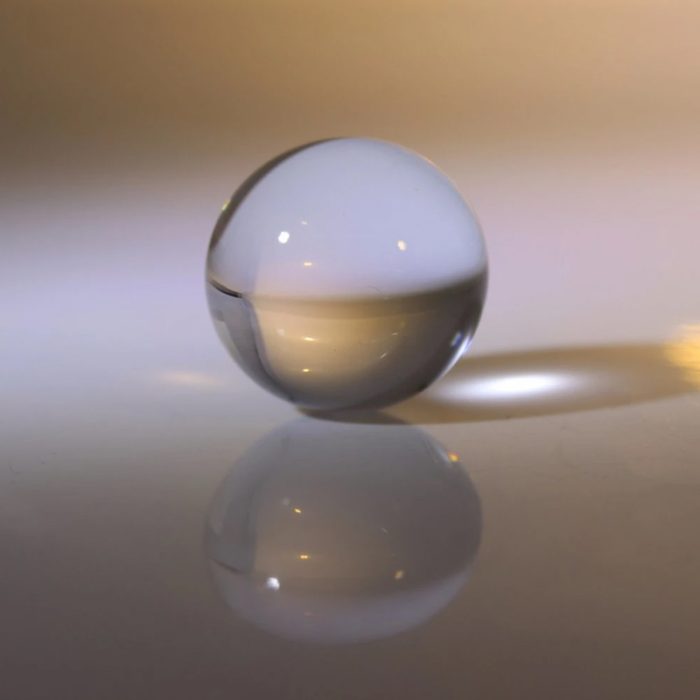

Custom Focusing Spherical Ball Micro Lenses

Original price was: $1.20.Current price is: $0.68.

43% Off

Globe Micro Ball lens is a great optical components for improving signal coupling between fibers, emitters, and detectors. They are also used in endoscopy, bar code scanning, ball pre-forms for aspheric lenses, and sensor applications.

Categories: Optical Ball Lenses

Description
Reviews (0)

Description

Micro Ball lens is a great optical components for improving signal coupling between fibers, emitters, and detectors. They are also used in endoscopy, bar code scanning, ball pre-forms for aspheric lenses, and sensor applications. Ball lenses are manufactured from a single substrate of glass and can focus or collimate light, depending upon the geometry of the input source.

Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005

Specification

Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc.
Tolerance of diameter	+/-0.1, +/-0.01, +/-0.005 etc.
Surface accuracy	λ , 1/2λ , 1/4λ , 1/10λ etc.
Tolerance of Thickness	+/-0.1, +/-0.05, +/-0.01 etc.
Centration	+/-2′,+/-1′ etc.
Aperture N	5, 1 etc.
Irregularity ΔN	2, 1, 0.5, 0.2 etc.
Surface quality	60/40, 40/20, 20/10, 10/5 etc.
