Znse Meniscus focusing lens for Laser Equipment Parts
Original price was: $26.00.$22.00Current price is: $22.00.
15% Off

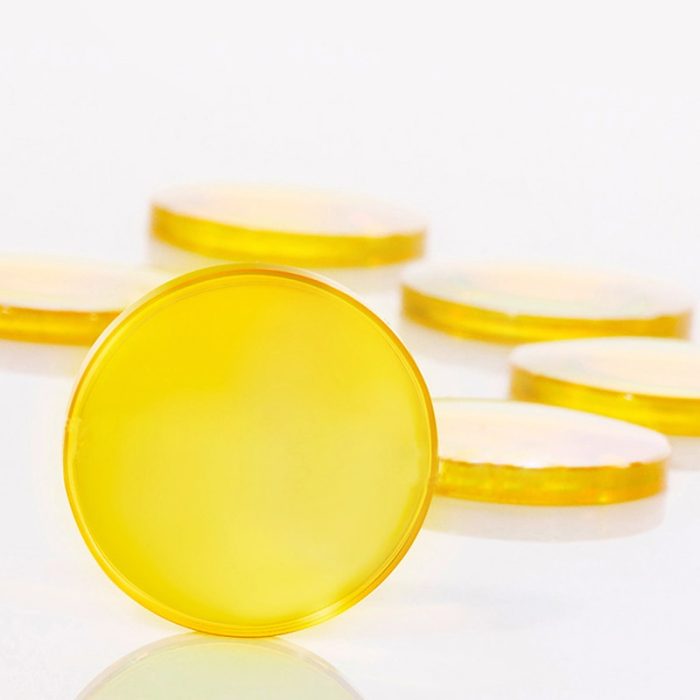

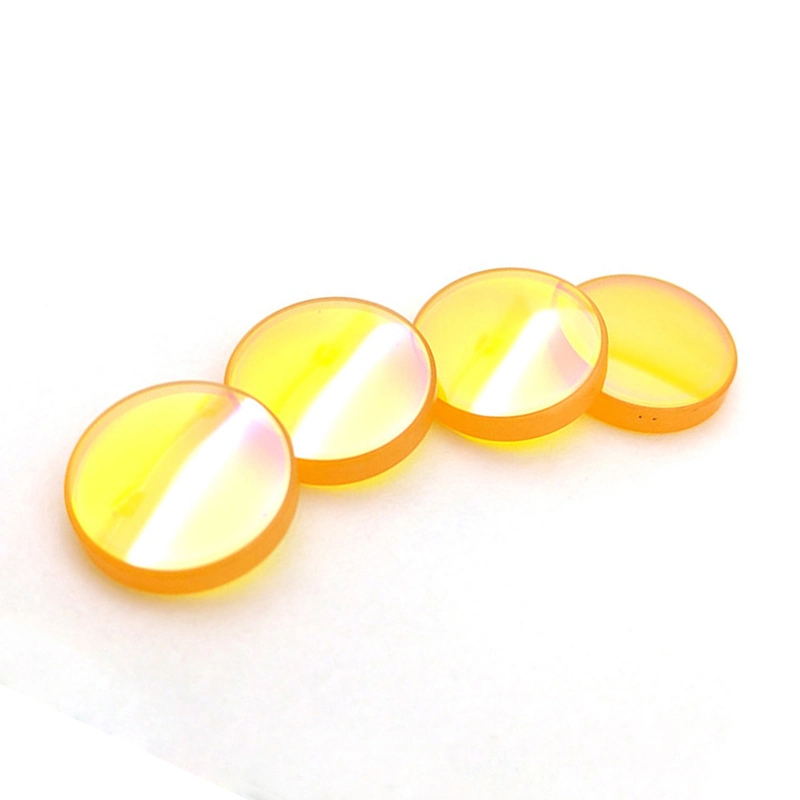

Meniscus focusing lens is concave and convex focusing lens. The substrate is laser grade CVD ZnSe and coated with the double-sided anti-reflective film.
Material: USA CVD Znse
Application: Laser marking, engraving and cutting machine，etc
Diameter: 12/18 /19.05 /20mm
Focal length:1.5″(38.1mm) 2″(50.8mm) 2.5″(63.5mm) 3″(76.2mm) 4″(101.6mm) 5″(127mm)
——-
Price:by case
Model:Z-003
Size:custom,etc
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Znse Meniscus focusing lens is concave and convex focusing lens. The substrate is laser grade CVD ZnSe and coated with the double-sided anti-reflective film. Meniscus focusing lens can effectively reduce spherical aberration and produce smaller light spot than plane-convex focusing lens. The convex surface should face the perpendicular incident light beam and the concave surface should face the workpiece.
These lenses are widely used by all customers producing and using industrial and medical laser systems. They are also used in laser cutting, laser welding and so on.
Specifications
Diameter Tolerance: +0/-0.13mm/+0.000” -0.005”
Thickness Tolerance: ±0.25mm/±0.010”
FL Tolerance: <±2%
Centration: <3 arc minutes
Clear Aperture >90%
Surface Figure <λ/2 per 1″[email protected]
Surface Quality 40-20 scratch and dig
AR/AR coating R<0.5% per surface @ 10.6um
2. ZnSe Singlet Positive Meniscus Lenses (wavelength 10.6um)
Specifications
Diameter Tolerance: +0/-0.13mm/+0.000” -0.005”
Thickness Tolerance: ±0.25mm/±0.010”
FL Tolerance <±2%
Centration <3 arc minutes
Clear Aperture >90%
Surface Figure <λ/2 per 1″[email protected]
Surface Quality 40-20 scratch and dig
AR/AR coating R<0.5% per surface @ 10.6um
Specification
|
Diameter:
|
25mm
|
|
Focal length：
|
4” or 101.6mm
|
|
Substance:
|
CVD ZnSe
|
|
Wavelength:
|
10.6μm
|
|
Transmittance:
|
>99.5%
|
|
Diameter tolerance:
|
+0/-0.1mm
|
|
Focal length tolerance:
|
+/-1%
|
|
Surface quality:
|
λ/4
|
|
Optical aperture:
|
90%
|
|
Reflectivity：
|
<0.5%
|
|
Surface accuracy:
|
20/10
|
|
Beveling:
|
0.1-0.5*45゜
|
|
Shape:
|
Plane-convex or Meniscus
|
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
FAQ:
1. Are you manufacturure? can we see your factory?
Yes.
2. Do you have test report?
Yes, we offer full size test report, about size, focal length, flatness, coating curve, coating plate.
3.What is your production quantity everymonth?
It depands on the lens size and precison.
4.What is the Minimum quantity?
1pc
5.What is your delivery time?
samples: 10-20days
6.How should we do if the quality is not good?
Repair or return money.
