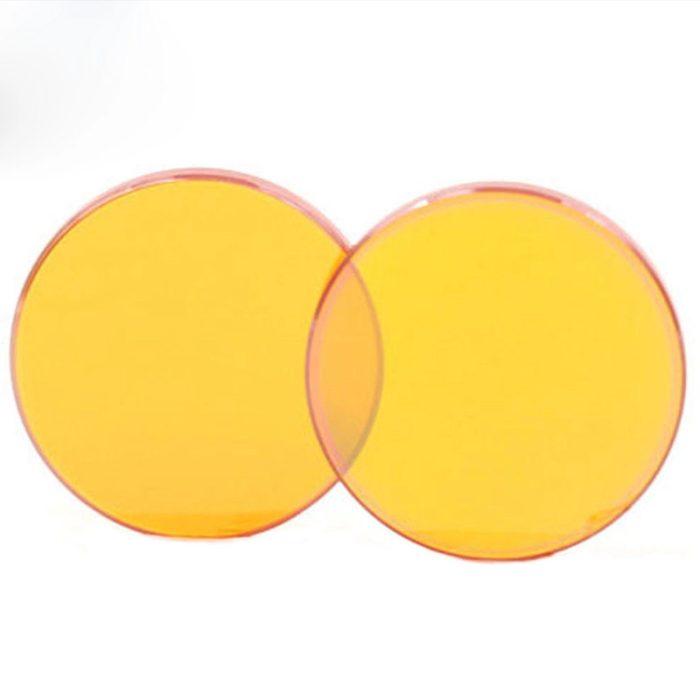

USA Znse CVD CO2 Laser Focus Lenses 20mm 19 18 12 Focusing Lens

Original price was: $25.00.Current price is: $14.00.

44% Off

Support global shipping!This is customized optical lens.ZnSe lens is a good material for CO2 laser cutting and engraving machine, We select excellent material from USA, High transmission and high quality surface roughness. With high quality, we produce ZnSe plano convex lens, ZnSe plano concave lens, ZnSe meniscus lens, Znse ball lens, and custom size ZnSe.
——-
Price:by case
Model:Z-001
Size:custom,etc
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories:

Description

ZnSe CVD Lens used for high power CO2 laser optics at 10.6µm, for protective optics windows or optical elements in FLIR (forward looking infrared) thermal imaging equipment, optics for medical and industrial applications (optical plane parallel windows (plates, disks, blanks), wedged windows, optical meniscus, spherical and cylindrical lenses, prisms, resonator mirrors of CO2 laser).

The refractive index is near 2.4. Zinc Selenide has a very low absorbtion coefficient and is used extensively for high power infrared laser optic. It is non-hygroscopic.

Zinc Selenide (ZnSe) – transparent in wide spectral range from yellow (visible) to far IR. ZnSe material is a chemically inert, non-hygroscopic and highly pure product that is very effective in many optical applications due to its extremely low bulk losses, high resistance to thermal shock and stability in virtually all environments, easily machined.
Special care should be taken when handling Zinc Selenide as it is a toxic material. Always wear rubber or plastic gloves to avoid risk of contamination.

Specification of our spherical lens as follow:
*Material: BK7,fused silica,MgF2,BaF2,CaF2,ZnSe,ZnS,Ge or other optical crystals
*Dimension Tolerance +0.0 — -0.1mm
*Center Thickness +/-0.1mm
*Focal Length Tolerance+/-1%
*Surface Quality:60/40
*Surface Figure: lambda/2 at 633nm on plano side
*Clear Aperture >90%
*Chamfer 0.25mm at 45 degree typical
*Coating Optional

Specification

Diameter 5mm to 250mm
Thickness 0.5-40mm
Material Import USA ZnSe, China ZnSe
Surface Quality 40-20 standard
Flatness 1/10 lambda
Chamfer 0.25mmx45degree
Focal Length Tol. +/-1%
Coating Wavelength 8um-12um
Clear Aperture >85% of diameter
Design Wavelength 10.6um
Inspection:Each lens be tested before packing,a formal tested report will be provided.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…

FAQ:
1. Are you manufacturure? can we see your factory?
Yes.

2. Do you have test report?
Yes, we offer full size test report, about size, focal length, flatness, coating curve, coating plate.

3.What is your production quantity everymonth?
It depands on the lens size and precison.

4.What is the Minimum quantity?
1pc

5.What is your delivery time?
samples: 10-20days

6.How should we do if the quality is not good?
Repair or return money.
