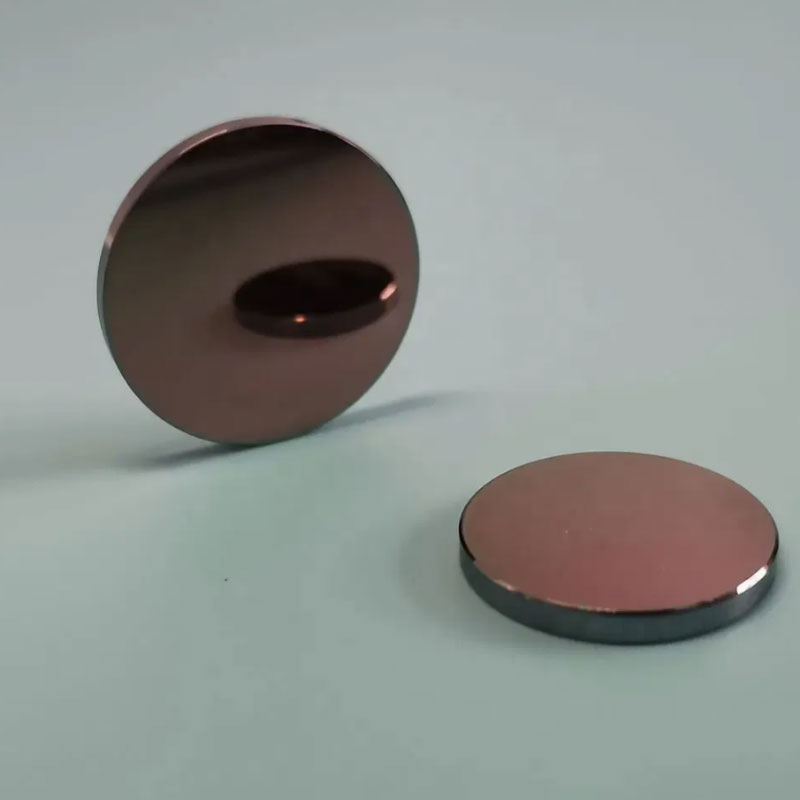

Optical Round Reflector Silver Mirror Lens for Reflect Light
Original price was: $25.00.$16.00Current price is: $16.00.
36% Off
Support global shipping！This is customized optical lens.Optical Round Reflector Silver Mirror Lens for Reflect Light
——-
Model:D-004
Size:φ10,φ20,etc
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Silver mirror Lens
It is an optical reflector specially used for projection curtain wall. Using the mirror, the obtained image not only has high brightness, but also has no deviation, the image quality is clear, and the color is vivid. Front surface mirrors are widely used in optical high-fidelity scanning reflection imaging, rear projection reflection imaging, rear projection splicing unit, optical laser reflection, etc.
It is an optical reflector specially used for projection curtain wall. Using the mirror, the obtained image not only has high brightness, but also has no deviation, the image quality is clear, and the color is vivid. Front surface mirrors are widely used in optical high-fidelity scanning reflection imaging, rear projection reflection imaging, rear projection splicing unit, optical laser reflection, etc.
Material: BK7 ZnSe Quartz Copper Aluminum
Size:0.5-700mm
Surface Quality:10/5
Flatness:1/20 lambda
Tolerance:+0.00/-0.01mm
Coating: Dielectric, Aluminum, Silver, Golden coating,metal coating.
Specification
| Reflectivity | R>99%-99.5% |
| AOI | 0-45 degree |
| Bandwidth | +/-5nm-7000nm |
| CWL Tolerance | +/-5nm |
| Al(UV) | Rmax 85% 200nm-350nm |
| Al(VIS) | Rmax 90% 400nm-750nm |
| Ag(NIR) | Rmax 97% 500nm-12um |
| Au(NIR) | Rmax 99% 700nm-14um |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
