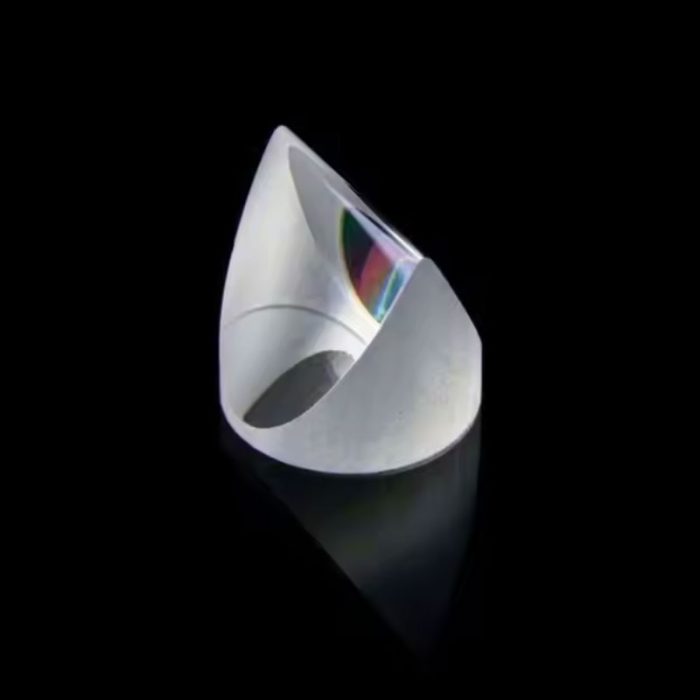

Optical Powell Lens for Laser Generator Line
Original price was: $16.00.$8.00Current price is: $8.00.
50% Off
Support global shipping！This is customized optical lens
Price：By case
Usage: Optical Instruments/High-end equipment/Military Industry/Space Flight and Aviation/Laser Line
Type: Powell Prism Lenses
Transmittance: >95%
Shape: Powell lens
Material: K9 Quartz Bk7 Sapphire Germanium Silicon Znse,etc (Can be Customized)
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
The Optical Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields.
Optlenses are professional supplier for powell lens, in fact, we have already become the one of the main important suppliers of powell lenses in China. cooperation with us , you will get high quality products with reasonable price and products performance at the same time .
These Laser Line Generator Lenses, also known as Powell lenses, generate a straight, uniform laser line by fanning out a collimated beam in one dimension, as shown in the diagram above. The apex of each lens features an aspheric curve that evenly distributes the optical power, resulting in an intensity variation of less than 25% over the center portion of the line. You will get more even energy distribution along the laser line than using the rod lenses and lenses.
Specification
| Material (Substrate) | H-K9L ( N-BK7 ), H-ZF7LA ( N-SF6 ) |
| Diameter | φ6,φ9 +0/-0.05 mm (or customized) |
| Height | 6.5~8.5mm+/-0.05 mm (or customized) |
| Fan Angle | 10°~90° +/-3% deg |
| Energy Uniformity | <20% (central 80% of line.) |
| Straightness of line | <0.1% |
| Apex Offset | <0.02mm |
| Wavelength Range | 400nm-1100nm |
| Clear Aperture | ≥90% |
| Input Beam Size | Dia. 0.5-5mm |
| Scratch and Dig (S/D) | 60/40 40/20 |
| Coating | Uncoated, AR, BBAR, Reflective |
| RoHS | Compliant |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
Q1:Can you send me free samples or Can i have an sample order ?
A: Yes, We accept sample orders, and we’re also willing to send you free sample to test and check its quality . if we don’t have the item in stock , then you could place an sample order.
Q2: How many days can i get my package after placing order?
A: If the order needs customized also the quantity is big. it will take around 10-30 wroking days to produce then ship Save ping.
Q3: OEM services available?
A: Sure, please send us your design paper on platform to confirm more details information.
Q4:We have a commercial project,Can you help me offer an optical design solution ?
A:Yes, we have professional experts who are engaged in optical design for more than 25 years , please send us more detail of your project,we will supply our most suitable solutions for you.
Q5: What shipping methods do you have?
A: For small quanities or sample could by express such as: Fedex, UPS, DHL, EMS, etc. Large scale quantity in your demands:by sea/train ,or by air.In your requests.
