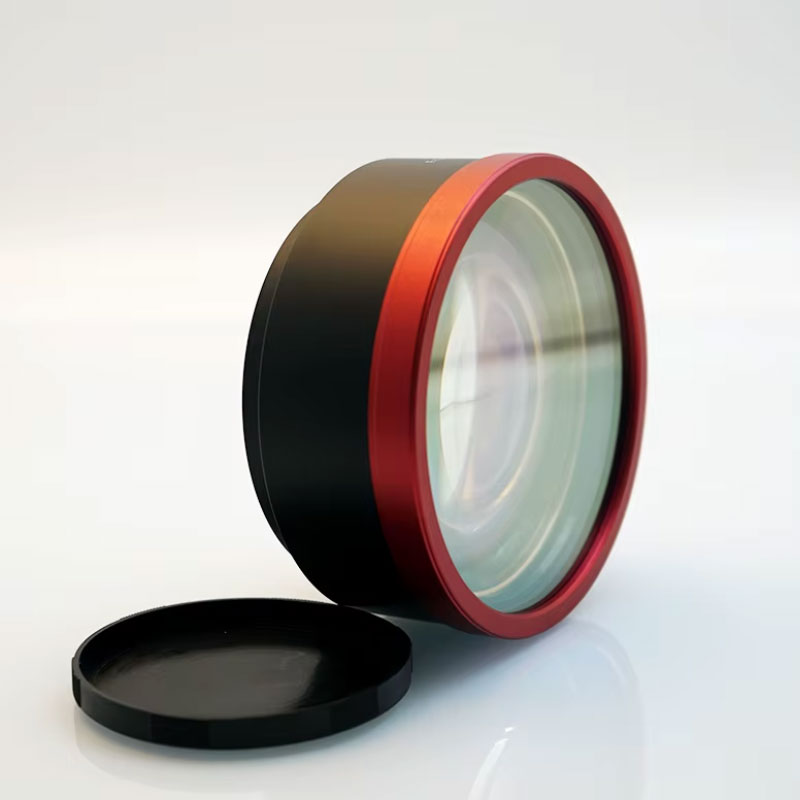

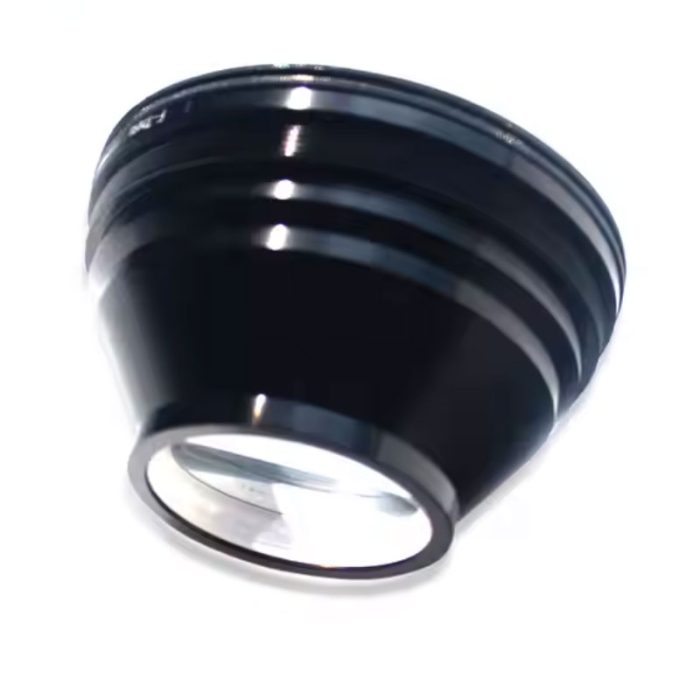

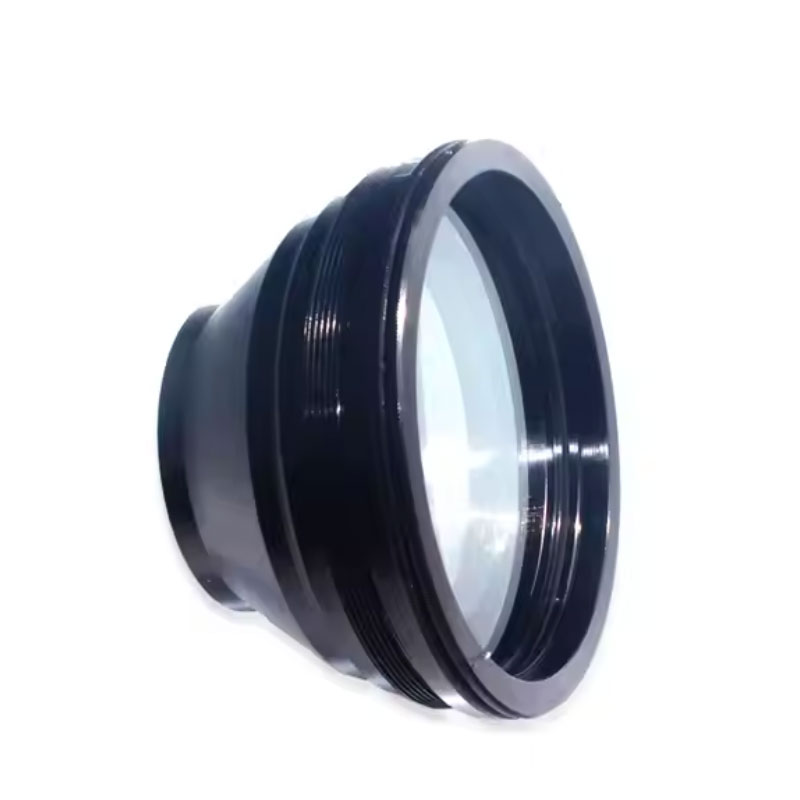

F Theta Scan Lens
Original price was: $120.00.$60.00Current price is: $60.00.
50% Off
Support global shipping！This is customized optical F Theta Scan Lens Factory
Price：By case
Usage: Optical Instruments/High-end equipment/Military Industry/Space Flight and Aviation/Laser Line
Type: Achromatic Lenses
Transmittance: >95%
Shape: Ocular Lens
Material: K9 Quartz Bk7 Sapphire Germanium Silicon Znse,etc (Can be Customized)
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
F-theta lens is mainly used in the laser marking system. The substrates of F-theta scan lens assembly are fused silica. F-theta scan lens assembly is designed with multiple elements. We have our own unique designs with different focal lengths to get the smaller spot sizes what you demand.
Features:
F theta lens play a major role in today’s leading-edge laser applications.JinShiDa manufactures scan lenses for CO2 laser systems that are used for marking, engraving, via hole drilling, and more.
In a typical scan lens configuration, the F-theta lens is used with one or two axis galvo mirrors that enable the laser beam’s fast positioning and precision focusing.

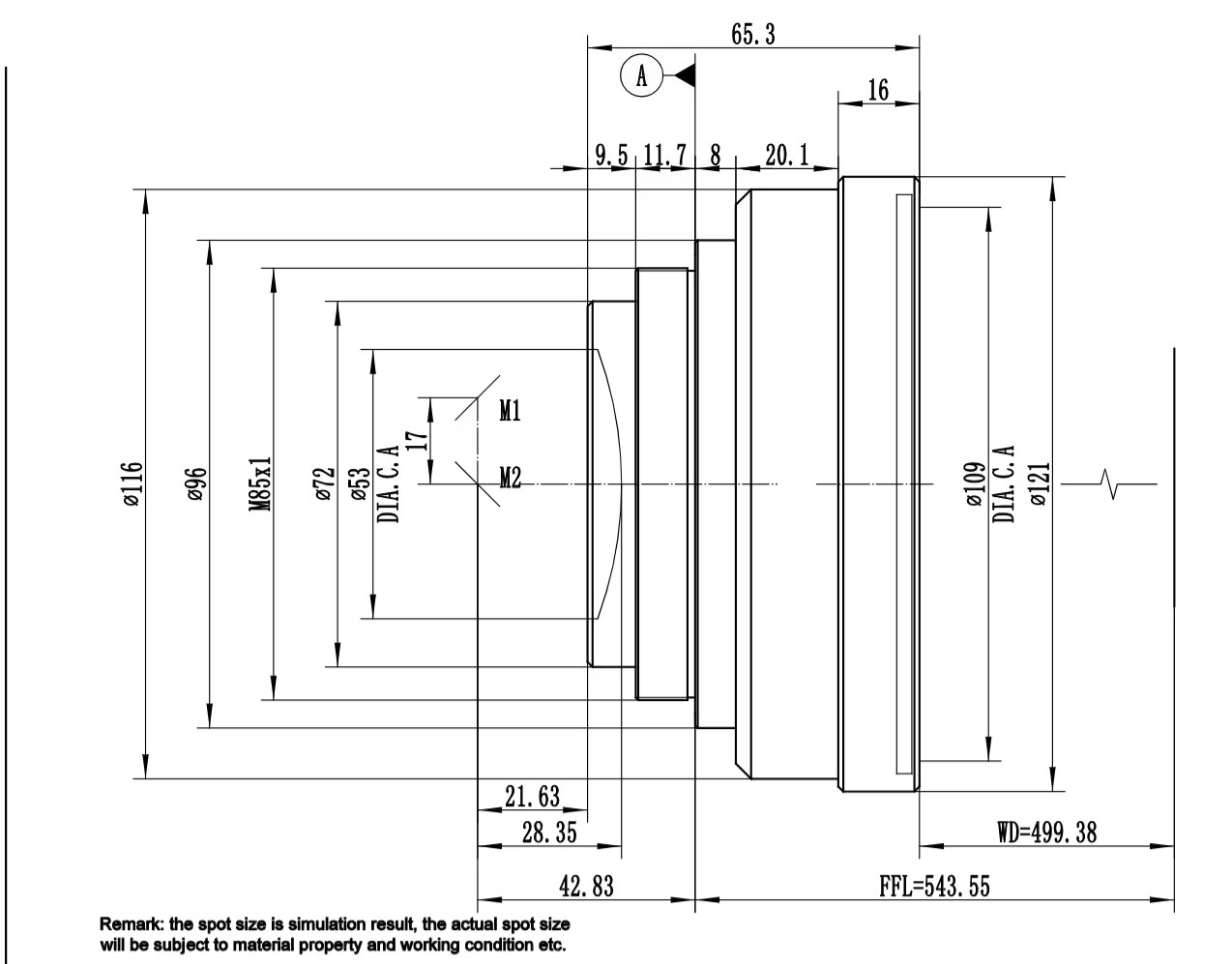

Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
Jiangsu
|
|
|
Brand Name
|
OPTLENSES
|
|
Model Number
|
OPL-1064-280-420-v2
|
|
Wavelength
|
1064nm
|
|
EFL
|
420mm
|
|
FFL
|
543.55mm
|
|
Scan angle
|
±27.1degree
|
|
Scan length
|
395mm
|
|
Scan field
|
280mm x280mm
|
|
Input beam Dia
|
14mm
|
|
Spot size range
|
57-87.8um
|
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
Q1:Can you send me free samples or Can i have an sample order ?
A: Yes, We accept sample orders, and we’re also willing to send you free sample to test and check its quality . if we don’t have the item in stock , then you could place an sample order.
Q2: How many days can i get my package after placing order?
A: If the order needs customized also the quantity is big. it will take around 10-30 wroking days to produce then ship Save ping.
Q3: OEM services available?
A: Sure, please send us your design paper on platform to confirm more details information.
Q4:We have a commercial project,Can you help me offer an optical design solution ?
A:Yes, we have professional experts who are engaged in optical design for more than 25 years , please send us more detail of your project,we will supply our most suitable solutions for you.
Q5: What shipping methods do you have?
A: For small quanities or sample could by express such as: Fedex, UPS, DHL, EMS, etc. Large scale quantity in your demands:by sea/train ,or by air.In your requests.
