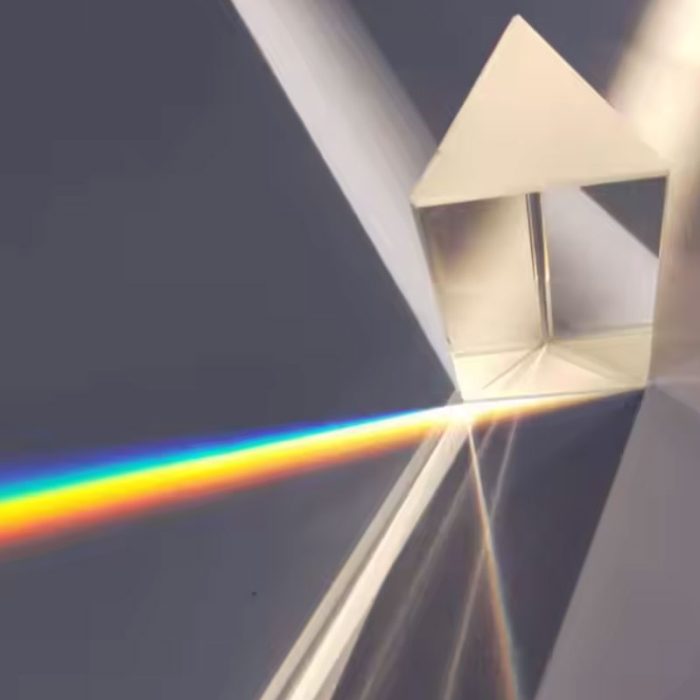

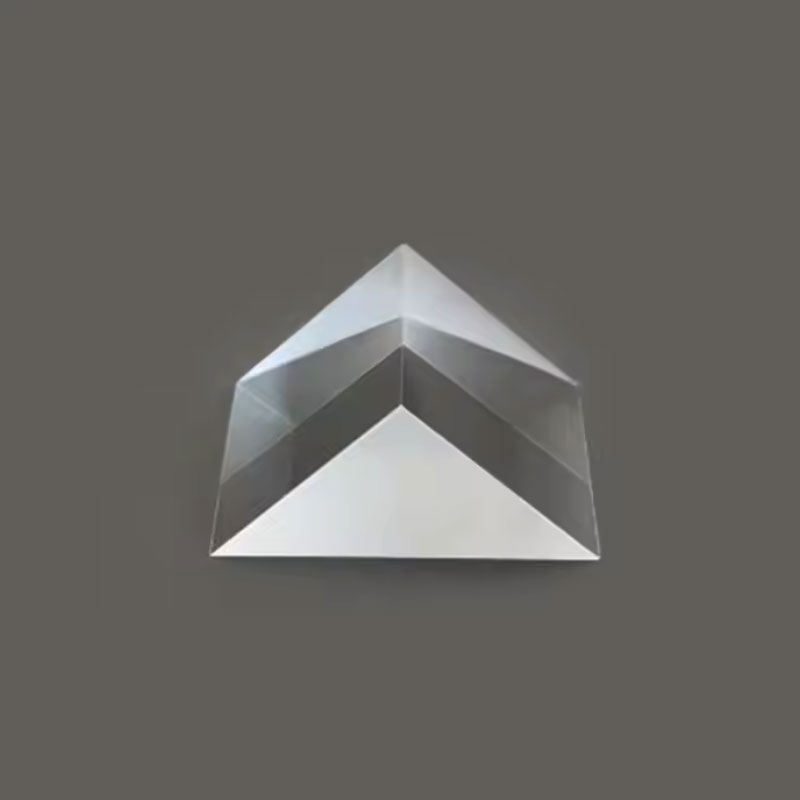

Equilateral Triangular Prism

Original price was: $15.00.Current price is: $8.00.

47% Off

Support global shipping!This is customized optical lens.Oem Customized Equilateral Triangular Prism Lens
——-
Model:P-006
Size:φ10,φ20,etc
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories:

Description

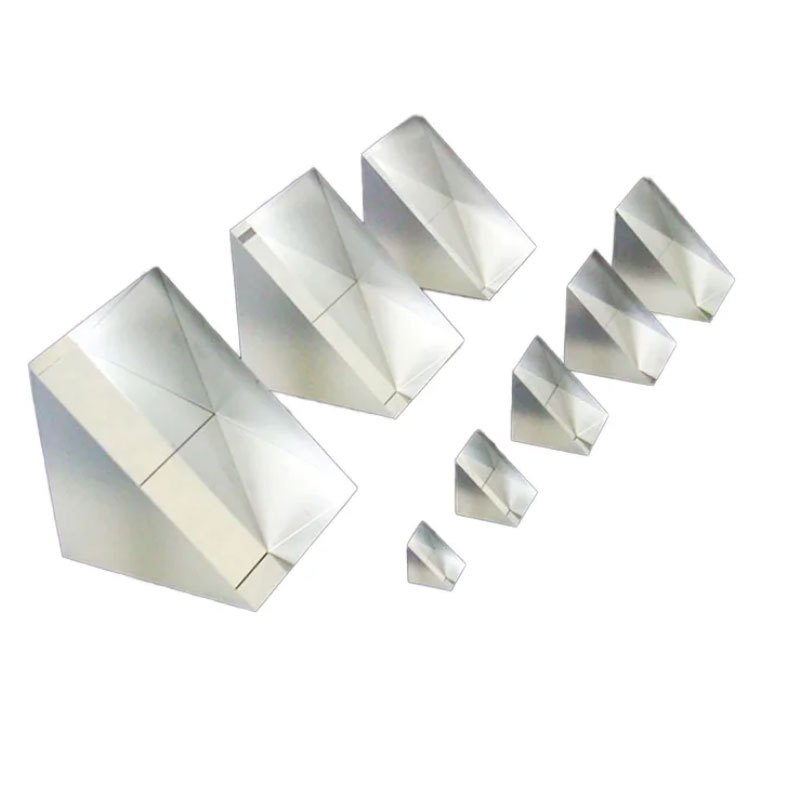

Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.

Application :

1,Right angle prisms : Application in Industrial lens

2,Equilateral Triangular Prism: Application in medical field

3, Triple prism : Application in aerospace field

Specification

Focal length ±5mm -±1000mm±1%
Top circle 5mm – 200mm±0.1mm
Center thickness tolerance ±0.05mm
Centering error of lenses ≤ 3min
Surface Accuracy @λ/4
Surface quality 40/20
Effective Aperture 90%
Coating

 Anti-reflection film, spectroscopic film, reflective film

Inspection:Each lens be tested before packing,a formal tested report will be provided.
Inspection:Each lens be tested before packing,a formal tested report will be provided.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
