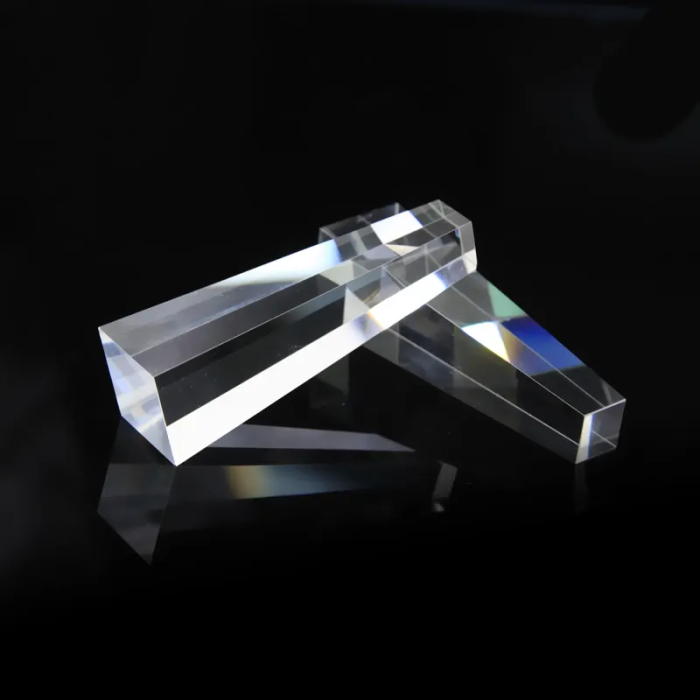

Customized Optical Glass Micro-optic Solar Power Prism for Concentrating Photovoltaic (CPV)
Original price was: $8.00.$5.50Current price is: $5.50.
31% Off
Type:Solar Power CpvPrism
Usage: Optical Instruments/High-end equipment/Military Industry/Space Flight and Aviation
Support global shipping！This is customized optical lens
Transmittance: >95%
Shape: Cpv Prism
Material: K9 Quartz Bk7 Sapphire Germanium Silicon Znse,etc (Can be Customized)
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Cpv Prism Lens Mainlyfor Concentrating Photovoltaic (CPV).A prism is a polyhedron made of transparent materials (such as glass, crystal, etc.) Products are widely used in optical equipment, teaching, industrial area, camera, video shooting, automation, medical, measuring and surveying equipment, aviation, astronomy,cpv, etc.. So it requires different materials for different work range.our products cover ultraviolet, visible light and infrared band.
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005
Specification
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′,+/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
1. Customs Duties:
All the products shipping from China might cause tariffs.All the products S&F sells default FOB trading terms the buyer will take responsibility on all kinds of tax in
their country. If you have special requests about declarationplease leave messages to us when you place an order.
2. Delivery
·All packages to Brazil need CPFnumber byDHL/UPS/Fedex/EMS
·All packages to Argentina need CUIT number byDHL/UPS/Fedex/EMS All packages by Chile need RUT number byDHL/UPS/Fedex/EMS
·All packages to Russia need the Full Name(First name+Mid name+Last name
2. Warranty
If any quality problem found after your receiving the package within 7 days,pls provide proof of video or photos to uswe could offer refund or replacement once we confirm the problem.
For return and exchange,buyer holds responsibility of paying the freight of sending the product back,We will bear the freight of resending it
