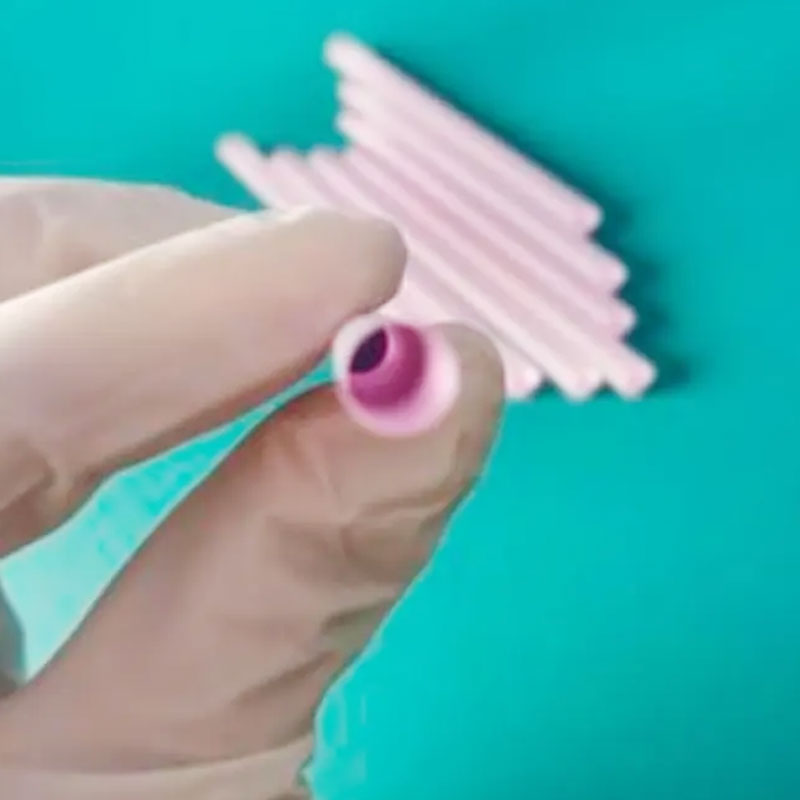

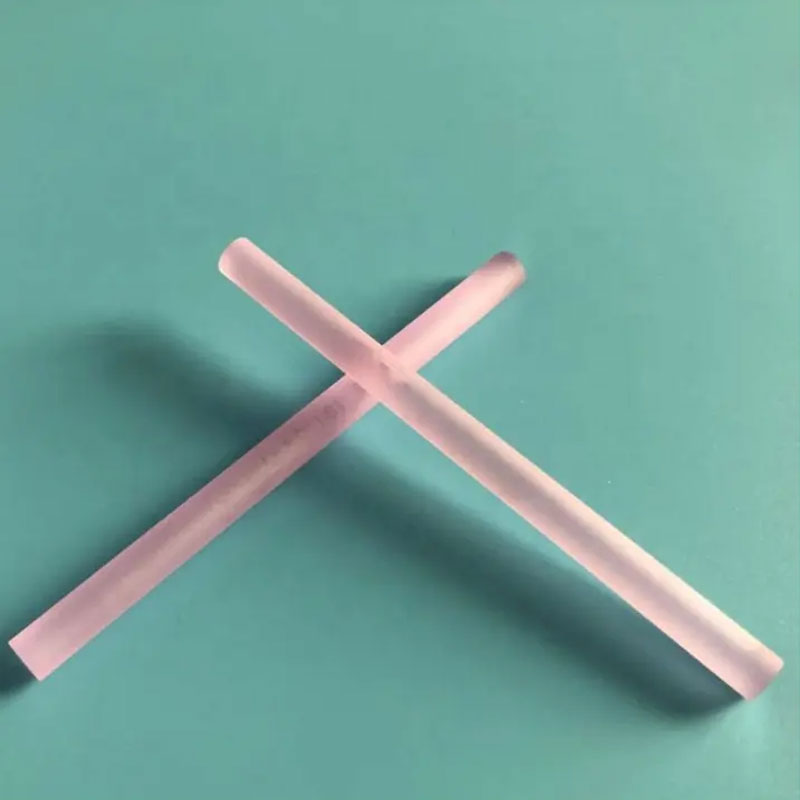

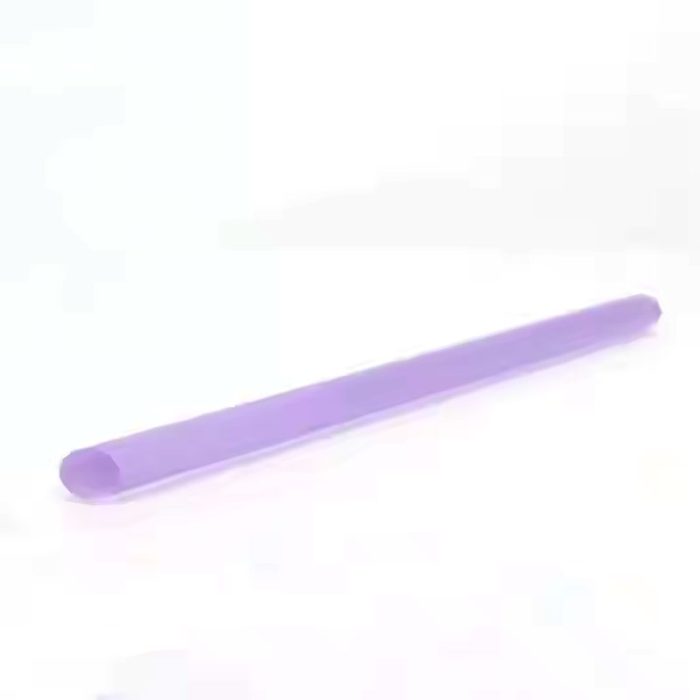

Custom Nd: YAG Optical Crystal Lens
Original price was: $460.00.$430.00Current price is: $430.00.
7% Off
Support global shipping！1064nm Optical Laser Yag Ruby Rod Crystal Lens，etc.
——-
Model:A-013
Size:custom
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
High gain
High efficiency Low loss at 1.06μm
Good thermal conductivity and thermal shock characteristics Mechanical strength
High optical quality Material characteristics that allow for various modes of operation (CW,pulsed,Q-switched,mode locked,and cavity dumped)
Specification of optical plano concave lens we manufactured:
Material: crystal ruby
Surface Qulity:10/5
diameter tolerance:+0.00/-0.05
Specification
|
Doping concentration Nd:
|
0.2 to 1.3 at%
|
|
Crystal orientation [111] or [100]
|
within 5 ° of deviation
|
|
Crystal bar size
|
Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements)
|
|
Dimensional tolerances
|
Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
|
|
Cylindrical processing
|
400 # abrasive grinding or polishing
|
|
End parallelism
|
≤ 10 “
|
|
Contour of the end face and the rod
|
≤ 5 ‘
|
|
Face flatness
|
Λ / 10 @ 632.8 nm
|
|
Surface Quality
|
10-5 (MIL-O-13830A)
|
|
Downside down
|
0.15 ± 0.05mm
|
|
Antireflection film reflectivity
|
≤ 0.25% @ 1064nm
|
|
Film resistance to laser damage threshold
|
≥ 500MW / cm2
|
Inspection:Each lens be tested before packing,a formal tested report will be provided.
01.Polishing
Non-dust Polishing Workshop Polishing The Products After Fine Grinding Through Polishing Machine,Polishing Power.
02.Optical Lens Coating
Metal Coating And Dielectric Coating Provided.Our Factory Can Provide AR,Dichroic Film,Protective Coating,Waterproof Coating Etc.
03.Optical Lens Inspection
Quality Control In Each Step In Production 100% Visual Inspection And Finished Product Inspection After Production.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
