1064nm Optical Laser Yag Ruby Rod Crystal Lens Manufacture High Quality

Original price was: $450.00.Current price is: $430.00.

4% Off

Support global shipping！1064nm Optical Laser Yag Ruby Rod Crystal Lens，etc.
——-
Model:A-012
Size:custom
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories: Optical Crystal Lens

Description
Reviews (0)

Description

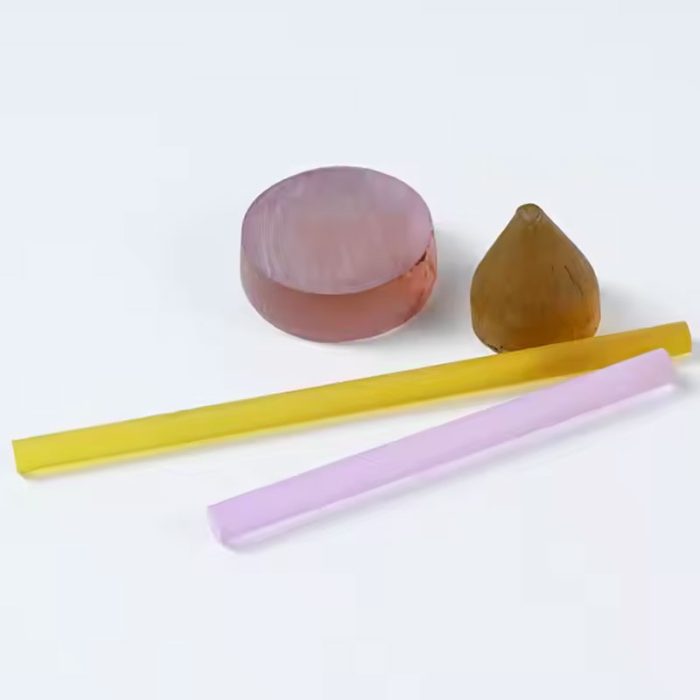

Our Nd:YAG rods crystal lens offer exceptional performance in a wide range of laser applications. The high thermal conductivity and excellent optical quality of these rods ensure reliable and efficient laser operation. Whether you need a custom-sized crystal for a medical laser or a standard rod for industrial applications, we can provide a solution that meets your exact requirements.

Advantage：

High gain

Low threshold
High efficiency Low loss at 1.06μm
Good thermal conductivity and thermal shock characteristics Mechanical strength
High optical quality Material characteristics that allow for various modes of operation (CW,pulsed,Q-switched,mode locked,and cavity dumped)

Specification of optical plano concave lens we manufactured:
Material: crystal ruby
Surface Qulity:10/5
diameter tolerance:+0.00/-0.05

flatness:1/10入

Specification

Doping concentration Nd:	0.2 to 1.3 at%
Crystal orientation [111] or [100]	within 5 ° of deviation
Crystal bar size	Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements)
Dimensional tolerances	Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
Cylindrical processing	400 # abrasive grinding or polishing
End parallelism	≤ 10 “
Contour of the end face and the rod	≤ 5 ‘
Face flatness	Λ / 10 @ 632.8 nm
Surface Quality	10-5 (MIL-O-13830A)
Downside down	0.15 ± 0.05mm
Antireflection film reflectivity	≤ 0.25% @ 1064nm
Film resistance to laser damage threshold	≥ 500MW / cm2

Inspection:Each lens be tested before packing,a formal tested report will be provided.

01.Polishing

Name: 1064nm Optical Laser Yag Ruby Rod Crystal Lens Manufacture High Quality - optical prism lens|optics filter|optical ball lenses manufactory
Price: 430.00 USD
Availability: InStock

Non-dust Polishing Workshop Polishing The Products After Fine Grinding Through Polishing Machine,Polishing Power.

02.Optical Lens Coating

Metal Coating And Dielectric Coating Provided.Our Factory Can Provide AR,Dichroic Film,Protective Coating,Waterproof Coating Etc.

03.Optical Lens Inspection

Quality Control In Each Step In Production 100% Visual Inspection And Finished Product Inspection After Production.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
