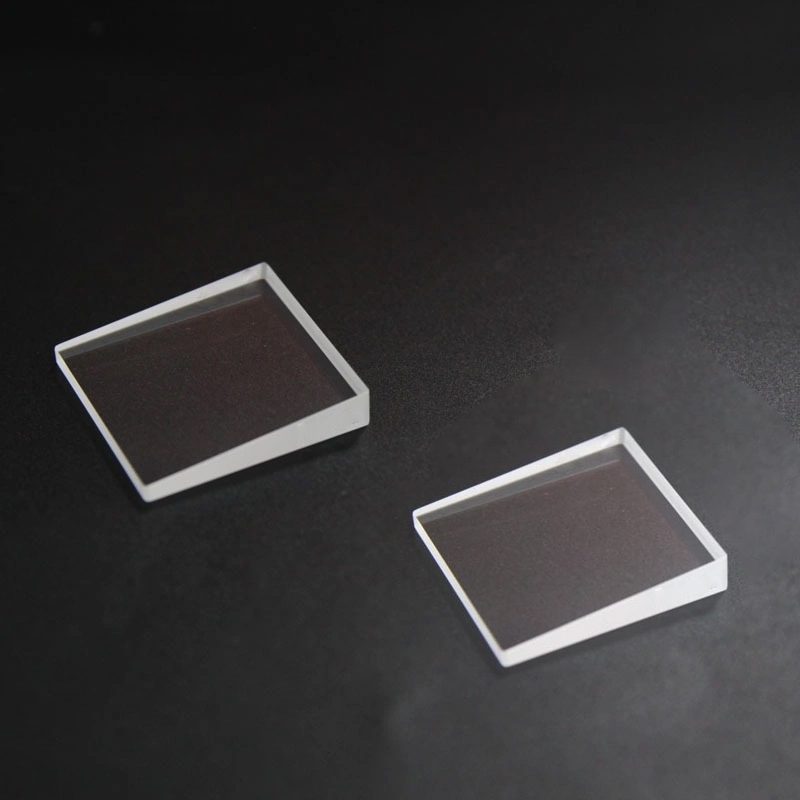

Custom Made Wedge Prism Optical Lens High Quality Glass Lens
Original price was: $6.00.$1.50Current price is: $1.50.
75% Off
A optical wedges is an optical element having plane-inclined surfaces. Usually the faces are inclined toward one another at very small angles. The wedge diverts light toward its thicker portion. Used as an exposure control device in sensitometry.
Transmittance: >95%
Shape: optical wedges
Material: K9 Quartz Bk7 Sapphire Germanium Silicon Znse,etc (Can be Customized)
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Prism Wedge Lens is a optical wedges is an optical element having plane-inclined surfaces. Usually the faces are inclined toward one another at very small angles. The wedge diverts light toward its thicker portion. Used as an exposure control device in sensitometry.
Applications of Optical Wedges:
1. laser imaging
2. laser beam steering
3. laser target
4. Beam deviation
5. beam steering
6. beam shaping
Specification
1.Wedge prisms can be used individually to deviate a laser beam a set angle, or two wedge prisms can be used together for beam steering applications.
2.A single wedge prism’s ability to deviate the angle of an incident beam is measured in Diopters with diopter deviating the beam 1cm at a 1m working distance.
3.Two wedge prisms can be used as an anamorphic pair for beam shaping (to correct the elliptical shape of diode outputs).
4.The wedge prism is a prism with a shallow angle between its input and output surfaces. This angle is usually 3 degrees or less. Refraction at the surfaces causes the prism to deflect light by a fixed angle. When viewing a scene through such a prism, objects will appear to be offset by an amount that varies with their distance from the prism .
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
Packaging & Delivery.
Packaging Details:
Inner packing——-special protective packing for optical products.
Outer packing——carton, Shock absorption material and bubble wrap
Delivery Time
7-20days
Delivery: Generally, we use the Fedex, DHL, UPS, TNT, Shunfeng, etc.
Please note it before delivery. Transit time deponds on the express and destination.
By the way, we would re-check all the details before delivery.
