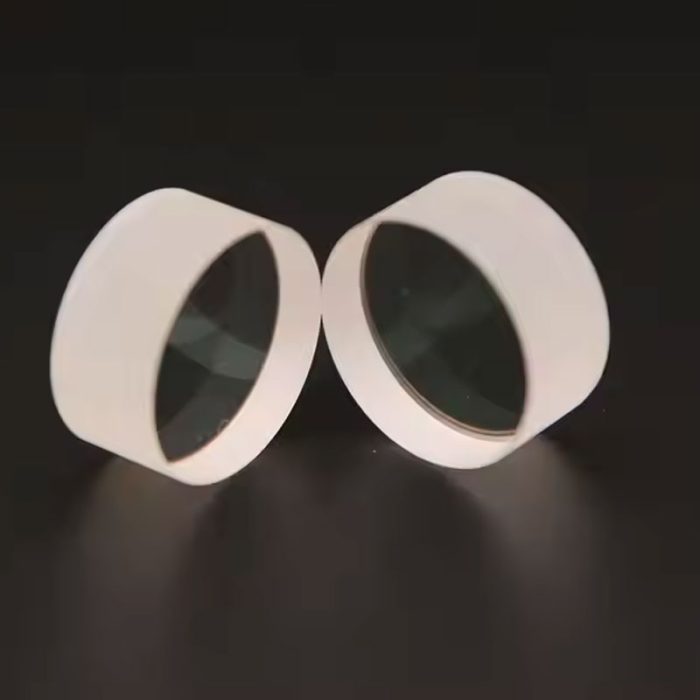

AR Coating UV Fused Silica Quartz Glass Optical Lens Plano Convex/Concave Lens, Biconvex Lens/Biconcave Lens
Original price was: $15.00.$5.00Current price is: $5.00.
67% Off
Support global shipping！This is customized optical lens.The Achromatic Lens is used for binocular&monocular Telescope objective lens，etc.
——-
Model:A-010
Size:φ50,φ60,φ70,φ90,etc
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Optical Lenses are optical components designed to focus or diverge light, widely applicated from microscopy to laser processing. A Plano-Convex or Double-Convex lens causes light to focus to a point, while a Plano-Concave or Double-Concave lens diverges the light which traveling through the lens. Achromatic Lenses are ideal for correcting color, aspheric lenses are designed to correct spherical aberration. Ge, Si, or ZnSe lenses are suited for transmitting the Infrared (IR) spectrum, fused silica is well suited for the Ultraviolet (UV), BK7/K9 glass is widely used in VIS applications.
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005
Specification
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′,+/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
