American Optical Welding Lens​
American Optical Welding Lens​ - Image 2
Share this
Tweet this
Email this
American Optical Welding Lens​

Original price was: $18.00.Current price is: $3.50.

81% Off

Support global shipping！This is customized American Optical Welding Lens​​.We supply kinds of plano-convex cylindrical lens,plano-concave cylindrical lens,bi-convex cylindrical lens,bi-concave cylindrical lens,meniscus cylindrical lens,Rod cylindrical lenses,special cylindrical lens etc..
——-
Price:by case
Model:P-016
Size:custom,etc
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories:
Application
Specification
Suitable power kw
Single Weight kg

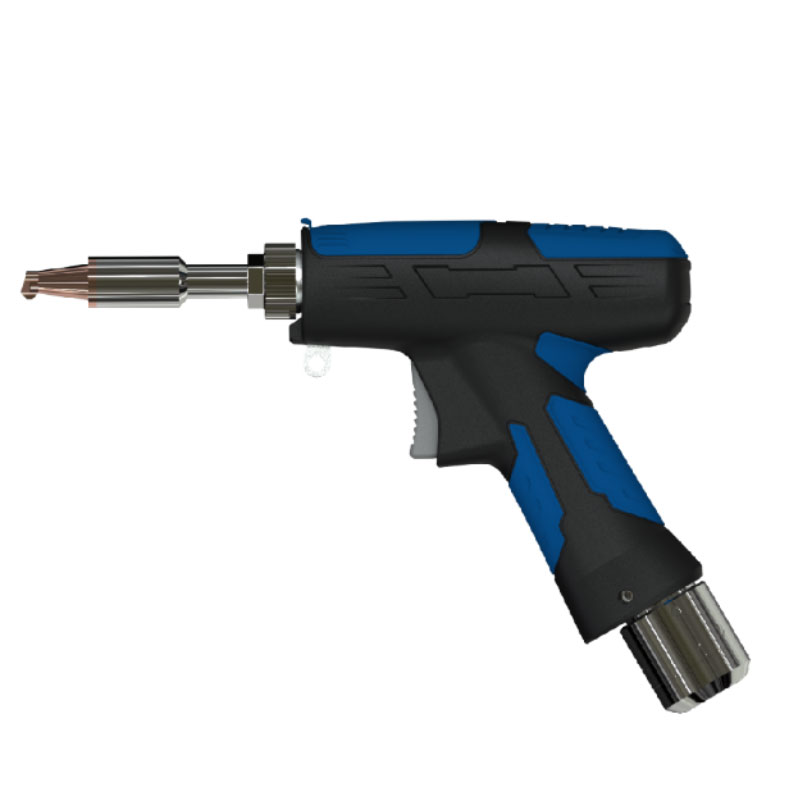

handheld american optical welding lens​
D20*4.5/F150
1.5-3kw
0.07
D20*4.5/F400
1.5-3kw
0.07
D20*4.5/F800
1.5-3kw
0.07

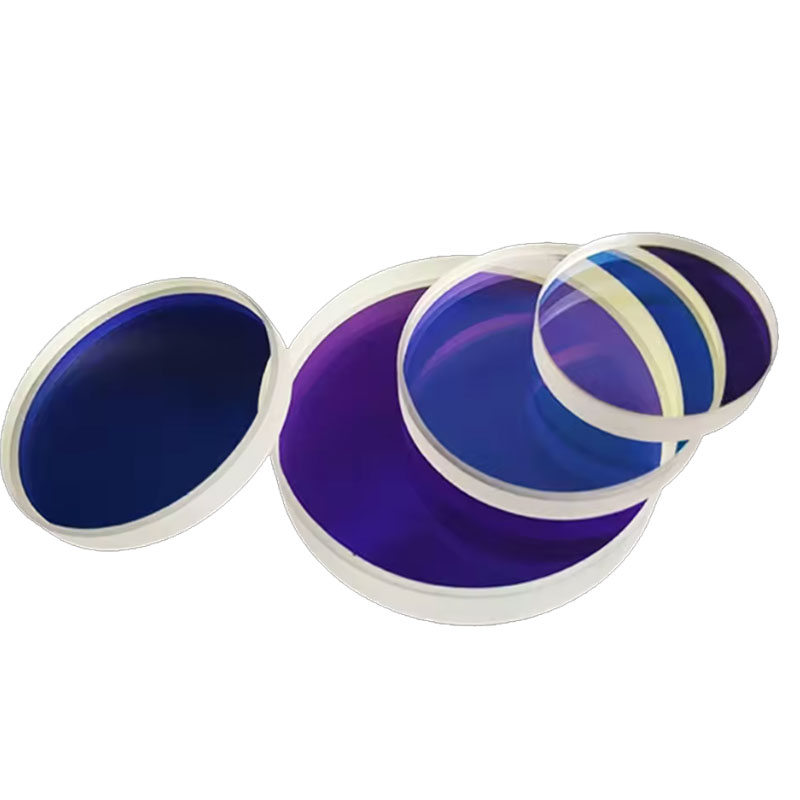

American Optical Welding Lens

Material: Quartz

Lens Diameter:20mm
Edge Thickness:4.5mm
Applicable Laser type: Fiber Laser
Coated both sides 1064nm
Application: Fiber laser welding machines
compatible with Sup21T, Sup23T

Risley Prism
plano-convex lens
Convex Cylindrical Lenses

Specification

Production name Prism Lens fx​
Material K9,JGS1,CaF2,Si,Ge etc.
Type Plano-convex Cylindrical Lens
Focal Distance ±5mm~±1000mm±1%
Size L*W:2-300mm*2-150mm±0.1mm
Size Tolerance ±0.2mm
Surface Shape λ/4 ~λ/2
Finish 10/5-80/50
Eccentricity <3 arc min
Clear Aperture >90%
Inverted <0.2mm*4.5°
Coating AR Coating or Customer Design
Inspection:Each lens be tested before packing,a formal tested report will be provided.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…

FAQ
Q: Do you provide samples? Is it free or charged?
·  We’d like to supply samples for free if we have it in stock, but we don’t pay the freight.
Q: How long is your delivery time?
·  Regarding inventory, it is 3 working days;
·  For customized one, it’s about 15-25 working days, depending on the exact quantity and order date.
Q: Is it possible to customize a special lens?
·  Yes, to customize special optical elements and coating are available here.
Q: How to pay?
·  T/T, Alibaba online assurance payment, MoneyGram, West Union, Paypal, and so on.
Q: How do you ship goods?
· Low-value sample: EUB, E Express of China Post, which is cheap;
· Lightweight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;
· Heavy cargo: by air or by sea, ship on a pallet.
