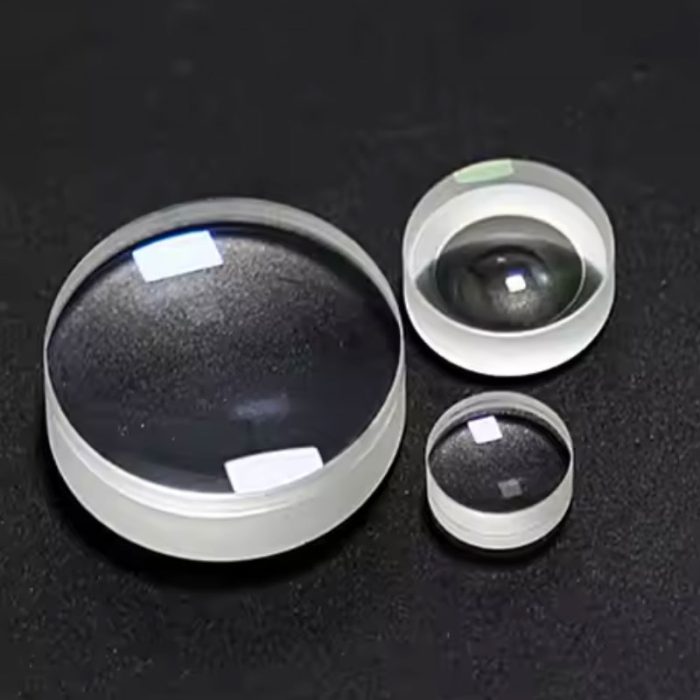

Achromatic Doublet Lens Hoya 360
Original price was: $13.00.$11.00Current price is: $11.00.
15% Off
Support global shipping！This is customized optical lens.The Achromatic Doublet Lens is used for binocular&monocular Telescope objective lens，etc.
——-
Model:A-003
Size:φ50,φ60,φ70,φ90,etc
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Achromatic Doublet Lens are used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. An Achromatic Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses.
Specification of Achromatic Lens：
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Surface Quality: 20-10
Diameter: 1.8mm-140mm
Specification
|
Substrate
|
K9 Quartz CaF2 & Hoya 360 custom
|
|
Wavelength
|
custom
|
|
Focal length
|
5-5000mm
|
|
Diameter
|
1-300mm
|
|
Thicknesses
|
0.12-60mm
|
|
Dimension tolerance
|
+0/-0.1mm
|
|
Thickness tolerance
|
±0.1mm
|
|
Surface quality (scratch & dig)
|
60-40, 40-20, or better
|
|
Surface accuracy
|
λ/2, λ/4 or better
|
|
Bevel
|
0.1~0.3mm x 45 degree
|
|
Clear aperture
|
>85%,>90%
|
|
Coating
|
AR coating or customized
|
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
Q1:Can you send me free samples or Can i have an sample order ?
A: Yes, We accept sample orders, and we’re also willing to send you free sample to test and check its quality . if we don’t have the item in stock , then you could place an sample order.
Q2: How many days can i get my package after placing order?
A: If the order needs customized also the quantity is big. it will take around 10-30 wroking days to produce then shipping.
Q3: OEM services available?
A: Sure, please send us your design paper on platform to confirm more details information.
Q4:We have a commercial project,Can you help me offer an optical design solution ?
A:Yes, we have professional experts who are engaged in optical design for many years , please send us more detail of your project,we will supply our most suitable solutions for you.
Q5: What shipping methods do you have?
A: For small quanities or sample could by express such as: Fedex, UPS, DHL, EMS, etc. Large scale quantity in your demands:by sea/train ,or by air.In your request
