Name: Scanning Power Objective Lens - Optlenses
Price: 58.00 USD
Availability: InStock

Sale!

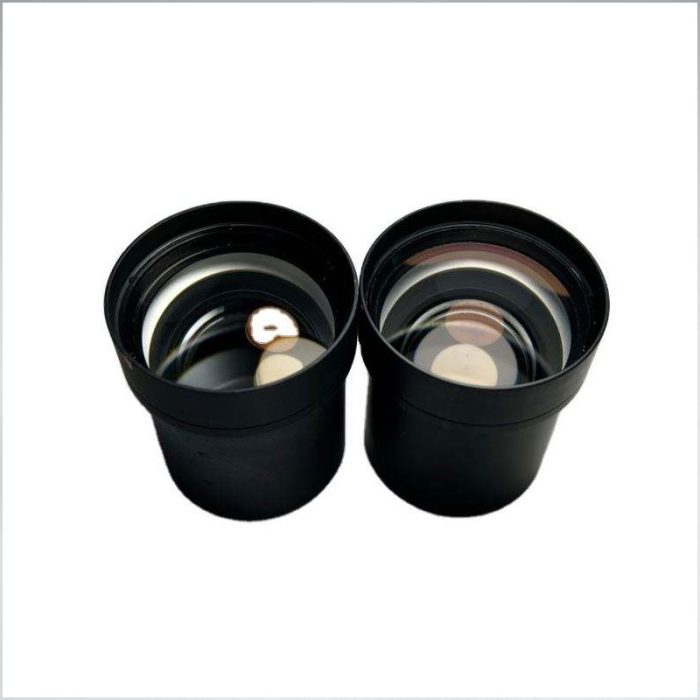

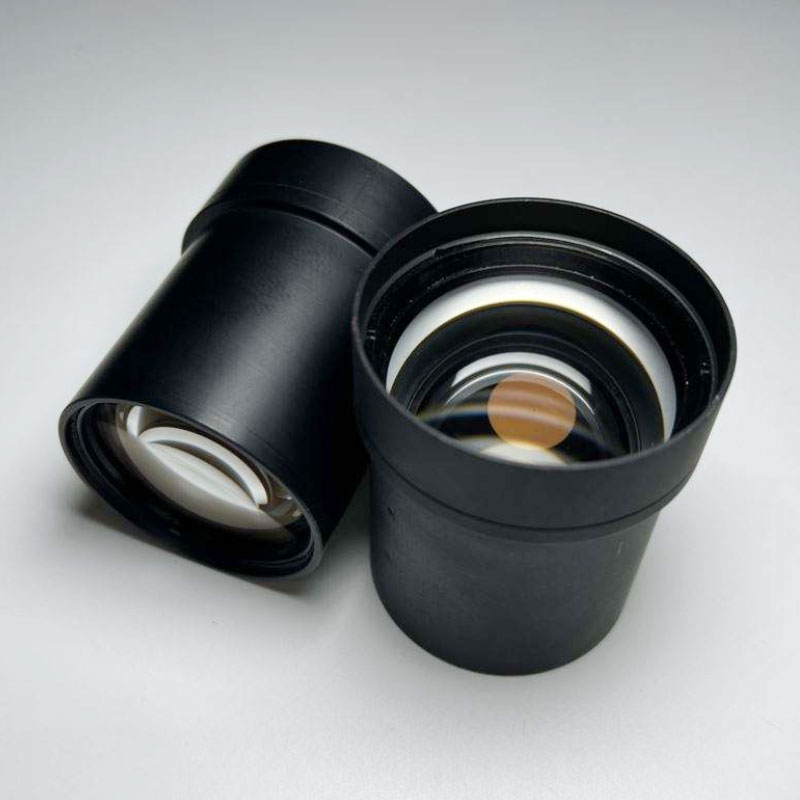

Scanning Power Objective Lens

Original price was: $120.00.Current price is: $58.00.

52% Off

Support global shipping！This is customized optical Scanning Power Objective Lens Supplier Factory In China
Price：By case
Usage: Optical Instruments/High-end equipment/Military Industry/Space Flight and Aviation/Laser Line
Type: Objetive Lenses
Transmittance: >95%
Shape: Ocular Lens
Material: K9 Quartz Bk7 Sapphire Germanium Silicon Znse,etc (Can be Customized)
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories: Optical Prisms

Description

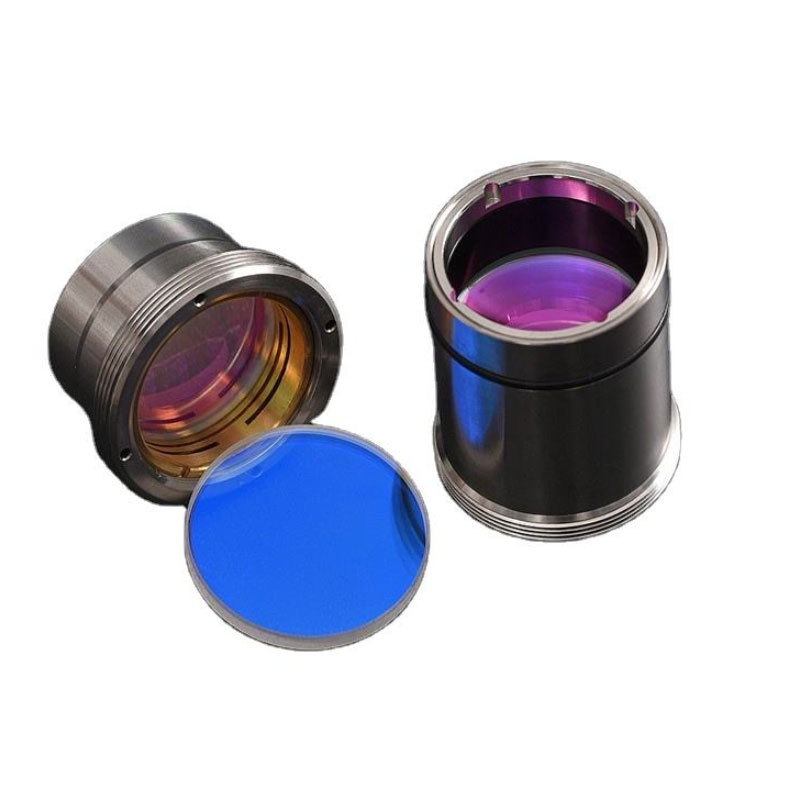

scanning power objective lens assembly is mainly used in the laser marking system. The substrates of F-theta scan lens assembly are fused silica. F-theta scan lens assembly is designed with multiple elements. We have our own unique designs with different focal lengths to get the smaller spot sizes what you demand.

Features:

F theta lens play a major role in today’s leading-edge laser applications.JinShiDa manufactures scan lenses for CO2 laser systems that are used for marking, engraving, via hole drilling, and more.

In a typical scan lens configuration, the F-theta lens is used with one or two axis galvo mirrors that enable the laser beam’s fast positioning and precision focusing.

Specification

Catalog	Number	Focal Length(mm)	Scan Filed(mm)	Input Beam EP	WD(mm)
Scanning Power Objective Lens	SL-355-70-100	100	70*70	7.0	136.0
	SL-355-105-170	170	105*105	7.0	213.5
	SL-355-130-210	210	130*130	7.0	255.0
	SL-355-150-254	254	150*150	7.0	316.0
	SL-355-220-330	330	220*220	7.0	355.0
	SL-532-70-100	100	70*70	12.0	115.0
	SL-532-110-160	160	110*110	12.0	186.0
	SL-532-150-210	210	150*150	12.0	234.0
	SL-532-175-254	254	175*175	12.0	262.0

Inspection:Each lens be tested before packing,a formal tested report will be provided.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…

Q1:Can you send me free samples or Can i have an sample order ?

A: Yes, We accept sample orders, and we’re also willing to send you free sample to test and check its quality . if we don’t have the item in stock , then you could place an sample order.

Q2: How many days can i get my package after placing order?

A: If the order needs customized also the quantity is big. it will take around 10-30 wroking days to produce then ship Save ping.

Q3: OEM services available?

A: Sure, please send us your design paper on platform to confirm more details information.

Q4:We have a commercial project,Can you help me offer an optical design solution ?

A:Yes, we have professional experts who are engaged in optical design for more than 25 years , please send us more detail of your project,we will supply our most suitable solutions for you.

Q5: What shipping methods do you have?

A: For small quanities or sample could by express such as: Fedex, UPS, DHL, EMS, etc. Large scale quantity in your demands:by sea/train ,or by air.In your requests.
