Sale!

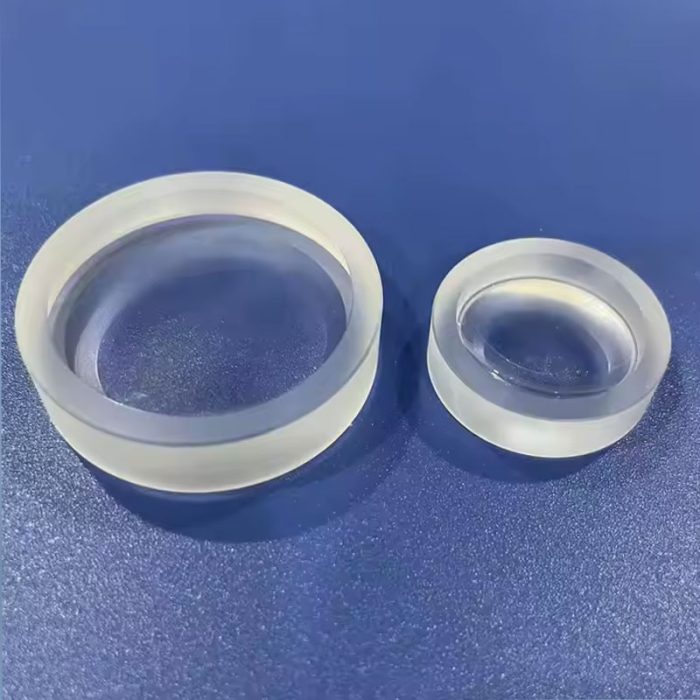

Plano Concave Lens

Name: Plano Concave Lens - Optlenses
Price: 8.00 USD
Availability: InStock

Original price was: $16.00.Current price is: $8.00.

50% Off

Support global shipping！Customized Plano Concave Lens Manufacturer ，etc.
——-
Model:A-014
Size:φ50,φ60,φ70,φ90,etc
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories: Cylindrical LensesTags: Concave Lenses

Description

Plano Concave (PCV) lenses

The main function of a plano concave lens is to diverge light rays.Flat concave lenses have a negative focal length and are used to diverge a beam of parallel light.Due to its thinness in the middle compared to the two sides,light rays will be diverged when passing through the lens.This type of lens is commonly used in applications tha require light divergence,such as adjusting the optical path in optical instrument.

Specification of optical 1.8mm ball lens we manufactured:
Material: BK7,Mgf2, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005

Specification of optical plano concave lens we manufactured:
Material: Mgf2,BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005

Specification

Diameter Tolerance	+0.0/-0.05mm
Center Thickness Tolerance	±0.02 mm
Focal Length Tolerance	±2%
Surface Quality	60/40, 40/20 or better
Material	optical glass/Mgf2 glass
Clear Aperture	>90%
Centering	<3 arc min
Coating	Custom（Plano Concave Lens）
Bevel	Protective bevel as needed
