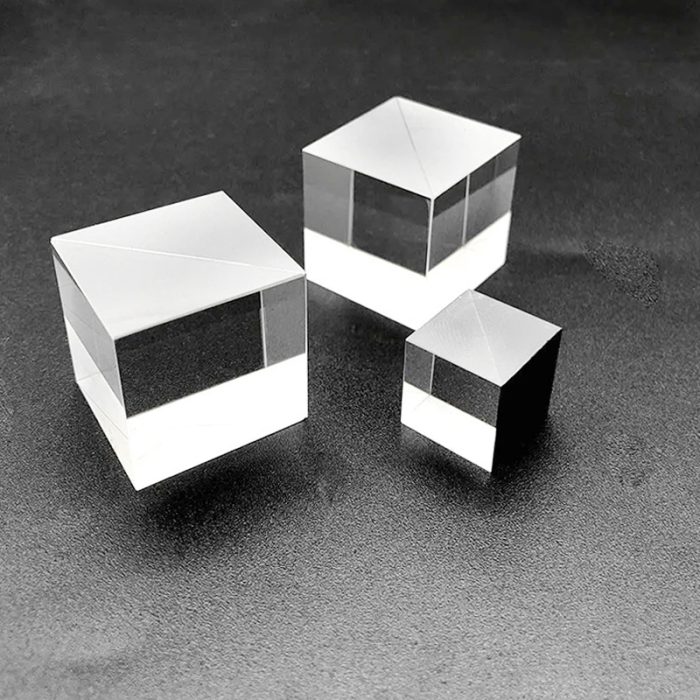

Optical Cube Beam splitters Prism Lenses

Original price was: $15.00.Current price is: $8.00.

47% Off

Support global shipping！This is customized optical lens.Dichroic prism generally consists of two right angle prisms cemented together slope, on one of the inclined surface plated beam splitter prism, the prism beam splitter is usually a metal beam splitter and two dielectric beam splitter.
——-
Price:by case
Model:C-007
Size:custom,etc
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity

Categories:

Description

Non-polarizing Beam Splitter Cube is made of two right angle prisms, with the hypotenuse coated metallic dielectirc coating and all input and output face AR Coated. NPBS coating allow the transmission and reflection of P- and S- polarization stay in6% of each other. We can make customized size NPBS beam splitter cube.

Processing a variety of substrate materials with different rectangular prisms, equilateral prism, dove prism (dove prism), pentagonal prism, roof prism other prism
Prism main application areas:
1. Common digital equipment: cameras, CCTV, projectors, digital cameras, digital video cameras, CCD camera and various kinds of optical equipment
2. Science and technology: binoculars, microscopes, Level, fingerprint, firearms aimed at a mirror, solar energy converters and various types of measuring instruments
3. Medical equipment: cystoscopy, endoscopy equipment and various types of laser therapy

Polarizing Beam Splitter Lens
Dichroic prism lens

Specification

Dimenision Tol. +/-0.05mm or customized
Standard Size 8*8*8mm  10*10*10mm  12.7*12.7*12.7mm  25.4*25.4*25.4mm  38.1*38.1*38.1mm
Surface Quality 20-10  10-5
Surface Flatness 1/10 lambda@633nm
Extinction Ratio >100:1
Absorption: <10%
Polarization: 6%
Wavelength 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm
Damaged threshold 15J/cm^2@1064nm,20ns,20HZ
Coating Typotenuse coated with pbs coating,all input and output coated with AR
Inspection:Each lens be tested before packing,a formal tested report will be provided.

Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…

FAQ
Q: Do you provide samples? Is it free or charged?
·  We’d like to supply samples for free if we have it in stock, but we don’t pay the freight.
Q: How long is your delivery time?
·  Regarding inventory, it is 3 working days;
·  For customized one, it’s about 15-25 working days, depending on the exact quantity and order date.
Q: Is it possible to customize a special lens?
·  Yes, to customize special optical elements and coating are available here.
Q: How to pay?
·  T/T, Alibaba online assurance payment, MoneyGram, West Union, Paypal, and so on.
Q: How do you ship goods?
· Low-value sample: EUB, E Express of China Post, which is cheap;
· Lightweight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;
· Heavy cargo: by air or by sea, ship on a pallet.
