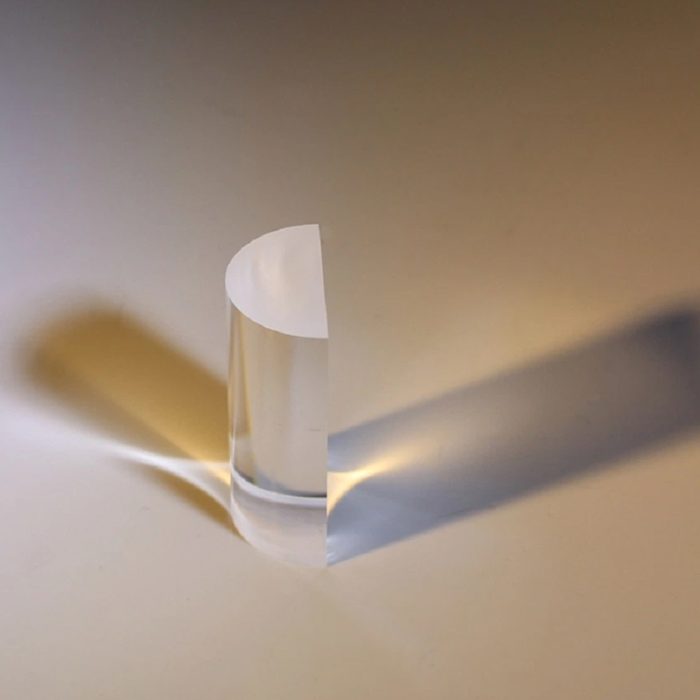

Optical Clear Fused Silica Glass 1.5 Thickness Convex Cylindrical Lenses
Original price was: $15.00.$9.00Current price is: $9.00.
40% Off
Support global shipping！This is customized optical lens.We supply kinds of plano-convex cylindrical lens,plano-concave cylindrical lens,bi-convex cylindrical lens,bi-concave cylindrical lens,meniscus cylindrical lens,Rod cylindrical lenses,special cylindrical lens etc..
——-
Price:by case
Model:C-004
Size:custom,etc
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
Cylindrical lens is used to correct astigmatism in the eye, and, in rangefinders, to produce astigmatism, stretching a point of light into a line.They are available in either plano concave or plano convex configurations. Plano-Concave Cylindrical lenses have a negative focal length and are used for image reduction or to spread light. Plano-Convex Cylindrical lenses have a positive focal length, which makes them ideal for collecting and focusing light for many imaging applications.
What is a cylindrical lens?
The cylindrical lens can change the size of light due to its elongated shape. What makes cylindrical lenses different is that their surfaces are cylindrical.
Since only one axis has a spherical radius, light converges, amplifies, or expands in only one direction. Since the light is concentrated in one dimension, the image is stretched.
The cylindrical lens can be a plano convex lens or a plano concave lens, the former will focus the beam, and the latter will expand the beam. According to your needs, you can choose the cylindrical lens suitable for your application needs.
Specification
| Production name | Cylindrical Lens |
| Material | K9,JGS1,CaF2,Si,Ge etc. |
| Type | Plano-convex Cylindrical Lens |
| Focal Distance | ±5mm~±1000mm±1% |
| Size | L*W:2-300mm*2-150mm±0.1mm |
| Size Tolerance | ±0.2mm |
| Surface Shape | λ/4 ~λ/2 |
| Finish | 10/5-80/50 |
| Eccentricity | <3 arc min |
| Clear Aperture | >90% |
| Inverted | <0.2mm*4.5° |
| Coating | AR Coating or Customer Design |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
FAQ
Q: Do you provide samples? Is it free or charged?
· We’d like to supply samples for free if we have it in stock, but we don’t pay the freight.
Q: How long is your delivery time?
· Regarding inventory, it is 3 working days;
· For customized one, it’s about 15-25 working days, depending on the exact quantity and order date.
Q: Is it possible to customize a special lens?
· Yes, to customize special optical elements and coating are available here.
Q: How to pay?
· T/T, Alibaba online assurance payment, MoneyGram, West Union, Paypal, and so on.
Q: How do you ship goods?
· Low-value sample: EUB, E Express of China Post, which is cheap;
· Lightweight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;
· Heavy cargo: by air or by sea, ship on a pallet.
