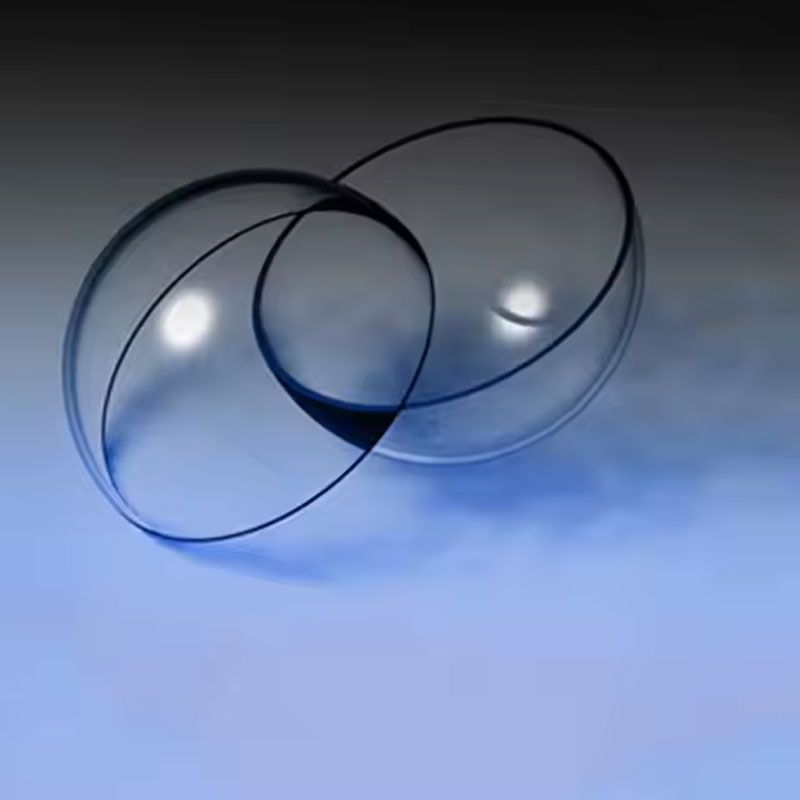

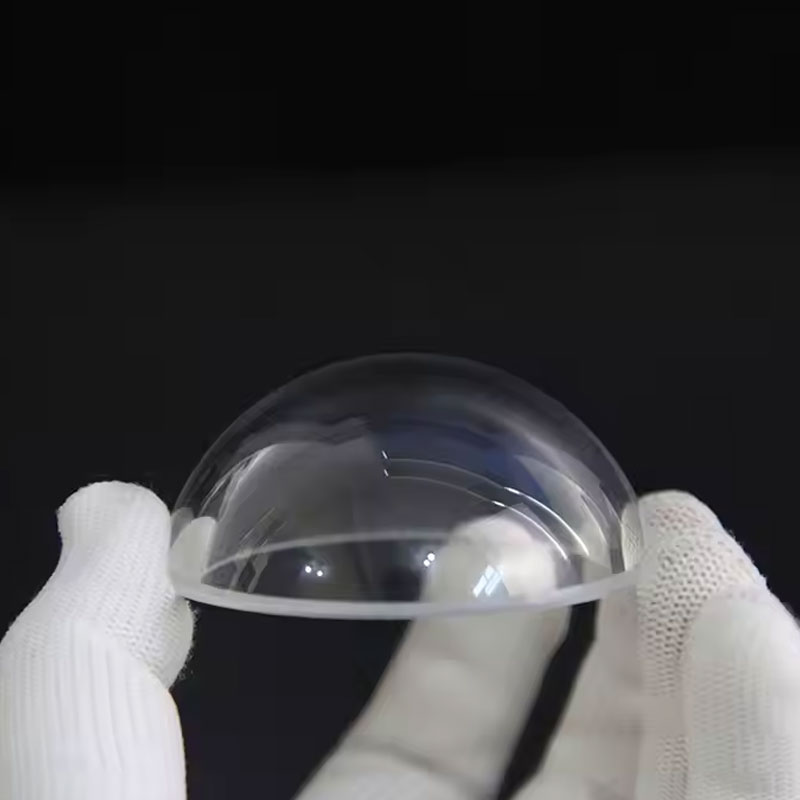

Custom Infrared IR Dome Lens
Original price was: $1,500.00.$990.00Current price is: $990.00.
34% Off
Support global shipping！This is customized optical lens.Large Size Custom Infrared IR Dome Lens
——-
Model:D-001
Size:φ10,φ20,etc
Price:by case
Min.order Quantity: 1 pieces
Lead time:1-4 weeks or depends on order quantity
Description
* Sapphire
* Fused Silica
* Calcium Fluoride (CaF2)
* Magnesium Fluoride (MgF2)
* Zinc Sulfide (ZnS), Zinc Selenide (ZnSe)
* Silicon (Si)
* Germanium (Ge)
Sapphire is ideal for both ultra-violet (UV) and MWIR (3-5micro) band, MgF2 are good for MWIR band, ZnSe and Germanium are good
choice for 3μm to 12μm domes covers both MWIR and LWIR region.
Optical domes can be seen as a kind of optical windows. It has no optical effect on optical path. Optical domes are ideal for split level and underrater work, meteorology and defense applications, aerospace application. BK7 is ideal for underwater camera domes, marine domes and any other visible to near infrared lead applications where clarity and strength is essential. We also offer precision domes from infrared material for much longer wavelength.
Specification
|
Materials
|
· Optical Glass
Including Fused Silica,Silicon,Germanium,ZnSe,Sapphire,CaF2,MgF2,BaF2 etc. |
|
Diameter(mm)
|
0.5-500
|
|
Diameter Tolerance
|
+0/-0.01~+0/-0.1
|
|
Thickness Tolerance (mm)
|
±0.01~±0.1
|
|
Focal Length Tolerance (%)
|
±1
|
|
Irregularity (P-V) @ 632.8nm
|
λ/10~λ/[email protected]
|
|
Surface Quality
|
10/5~60/40
|
|
Centration
|
<30”~3′
|
|
Clear Aperture (%)
|
>90
|
|
Bevel
|
Bevel
|
|
Coating
|
Uncoated, AR, BBAR
|
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
