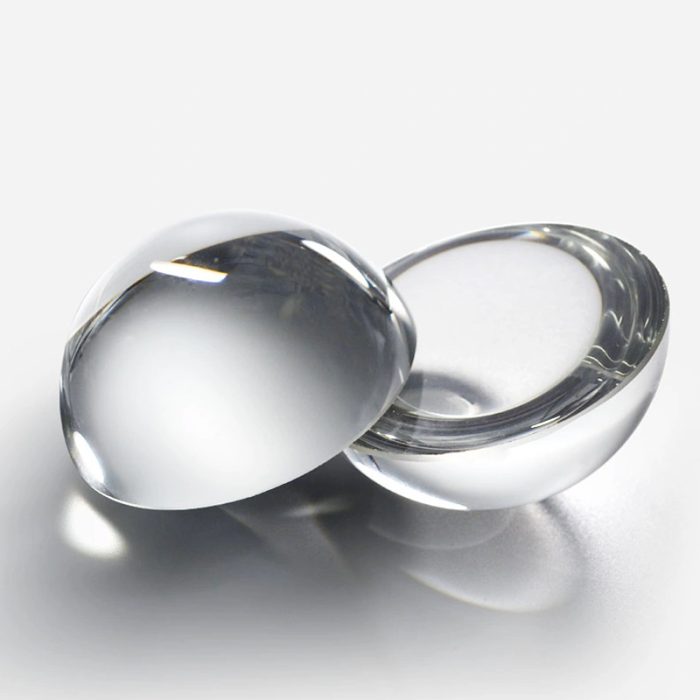

High Precision Half Hemisphere Ball Lens
$1.40 Original price was: $1.40.$0.90Current price is: $0.90.
36% Off
Diameter (mm):0.5mm-100mm
Radius Tolerance (μm):+0/-0.01
Center Thickness Tolerance:(mm) ±0.01
Surface Quality:20-10
Substrate:SF11 or other optical material
Coating:None or as requested
RoHS Compliant
Half-ball (hemispherical) lens are ideal for applications such as fiber communication, endoscopy, microscopy, optical pick-up devices, and laser measurement systems.
We also supply a range of half-ball lenses, which are available in optical glass, and sapphire. These half-ball lenses can have Anti-Reflective (AR) Coating. Half ball lenses give uniform light dispersion which makes them very good for LED traffic lights and LED display systems.
Specification of half ball lens as follow:
Diameter (mm):0.5mm-100mm
Radius Tolerance (μm):+0/-0.01
Center Thickness Tolerance:(mm) ±0.01
Surface Quality:20-10
Substrate:SF11 or other optical material
Coating:None or as requested
RoHS Compliant
Specification
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc. |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface accuracy | λ , 1/2λ , 1/4λ , 1/10λ etc. |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc. |
| Centration | +/-2′, +/-1′ etc. |
| Aperture N | 5, 1 etc. |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc. |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc. |
Inspection:Each lens be tested before packing,a formal tested report will be provided.
Application of our lenses:avionics,astronomy,military,medical,scientifics,laser etc…
